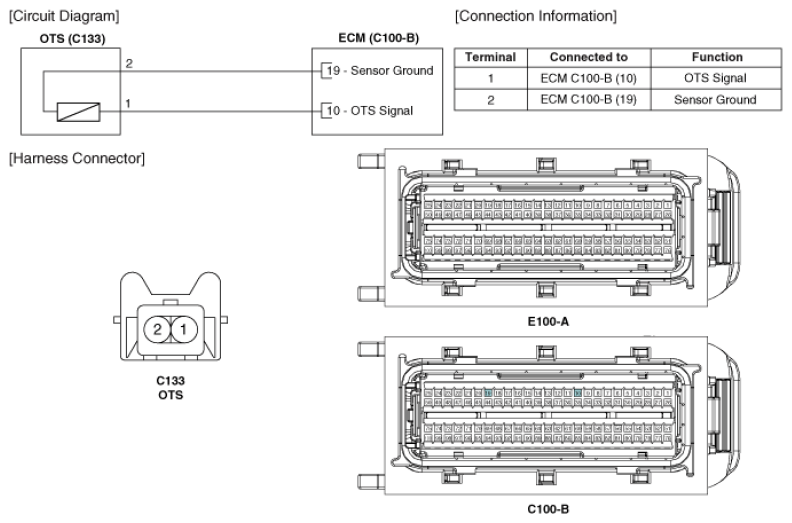

Home >> Hyundai >> 2013 >> Santa Fe XL Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> CVVT Oil Temperature Sensor (OTS) >> Schematic Diagrams >> Circuit Diagram
