Selection Of Engine Oil

Recommendation:

API classification: SM or above

ILSAC classification: GF4 or above

ACEA classification: A5 or above

SAE viscosity grade: Refer to the recommended SAE viscosity number

* If not available, API SL, ILSAC GF3, ACEA A3 can be used.

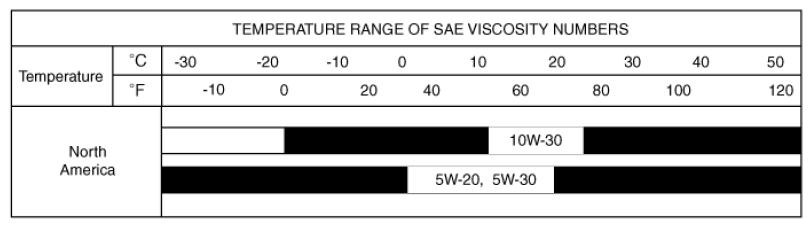

Fig 1: Engine Oil Viscosity Chart
G09267313Courtesy of HYUNDAI MOTOR AMERICA
NOTE: For best performance and maximum protection of all types of operation, select only those lubricants which:
  1. Satisfy the requirement of the API or ILSAC classification.
  2. Have proper SAE grade number for expected ambient temperature range.
  3. Lubricants that do not have both an SAE grade number and API or ILSAC service classification on the container should not be used.
