Components and Components Location: Components

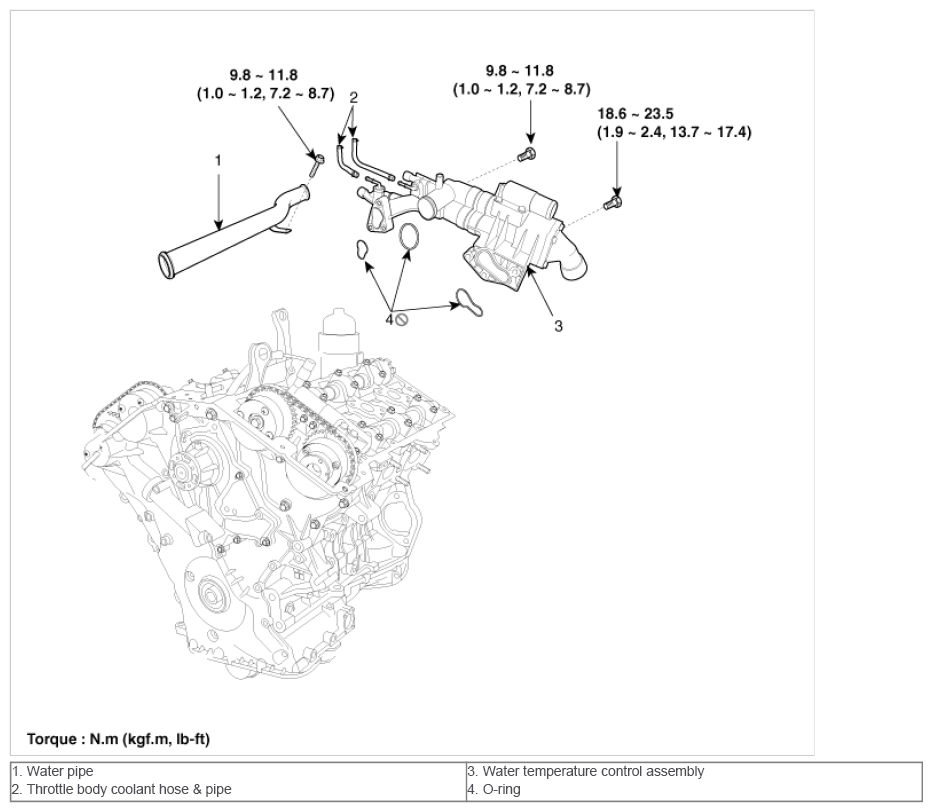

Fig 1: Water Temperature Control Assembly Replacement Components With Torque Specifications

G09267293

Courtesy of HYUNDAI MOTOR AMERICA
