Components and Components Location: Components

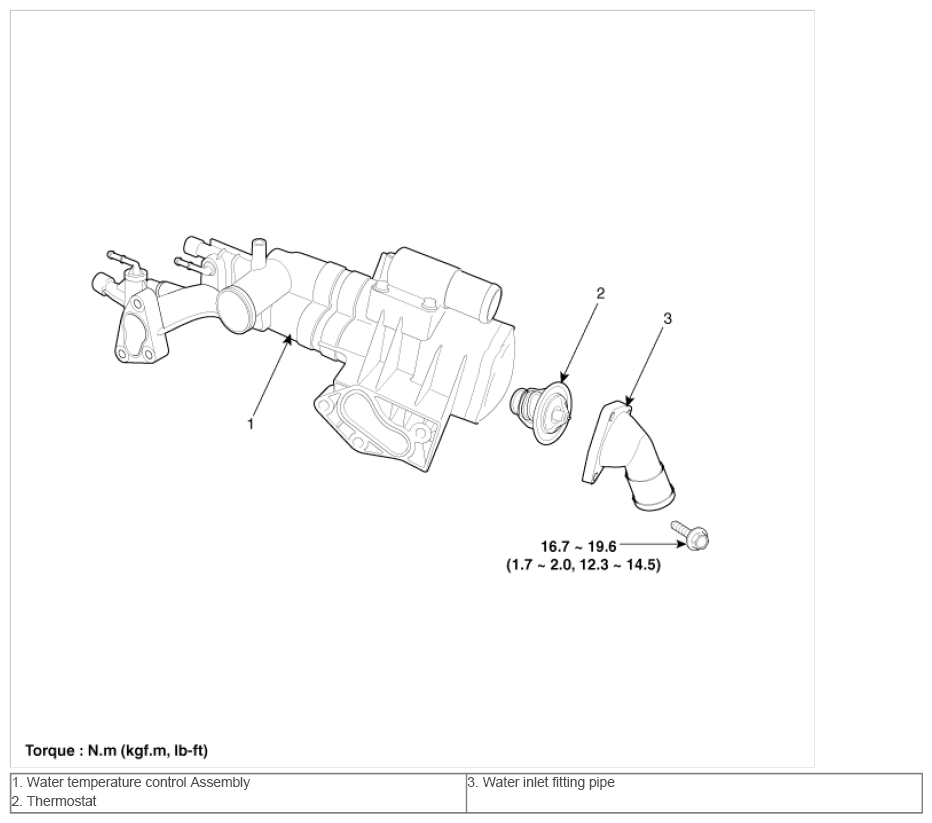

Fig 1: Water Temperature Control Assembly, Thermostat, Water Inlet Fitting Pipe And Bolt With Torque Specification

G09267307

Courtesy of HYUNDAI MOTOR AMERICA
