PWM Module

  1. Disconnect the battery "-" terminal.
  2. Remove the LH front wheel guard.

    (Refer to "FRONT WHEEL GUARD ")

  3. Disconnect the connectors (A) and then remove the PWM (B).

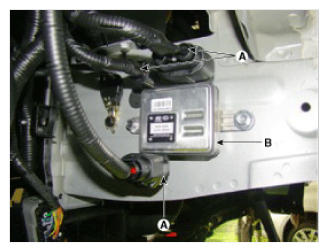

    Fig 1: Identifying PWM And Connectors
    G09267275Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
