Components and Components Location: Components

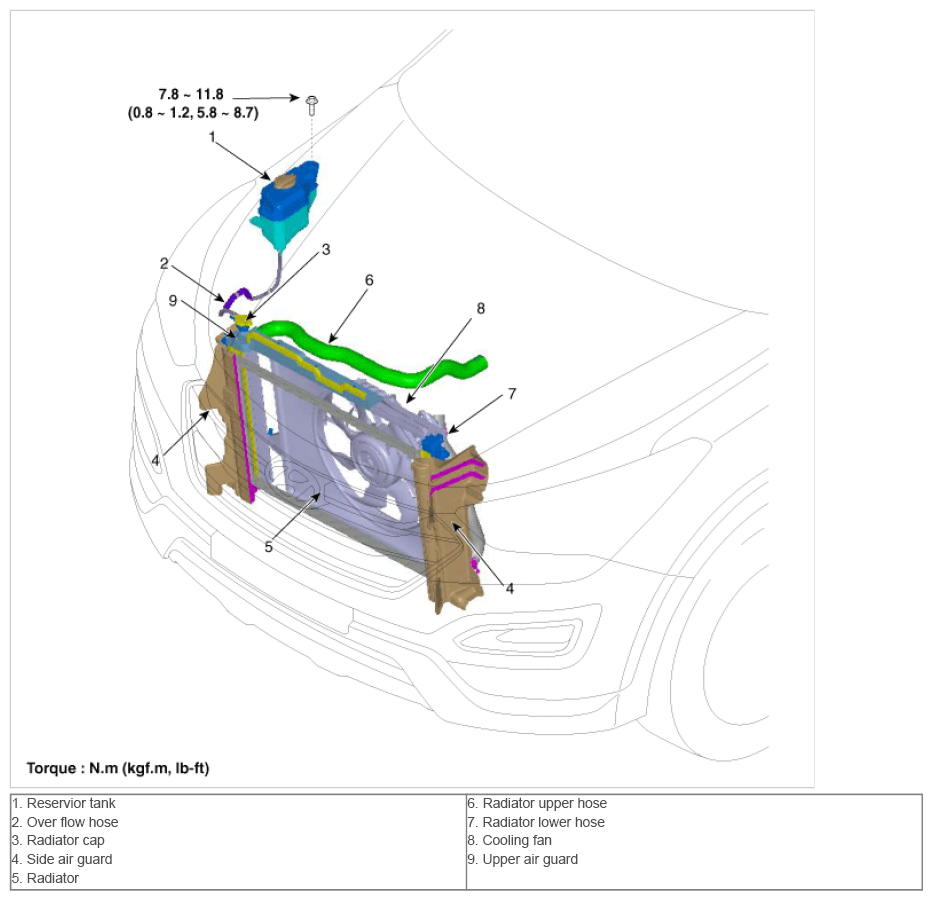

Fig 1: Cooling System Replacement Components With Torque Specifications (1 Of 2)
G09267261Courtesy of HYUNDAI MOTOR AMERICA

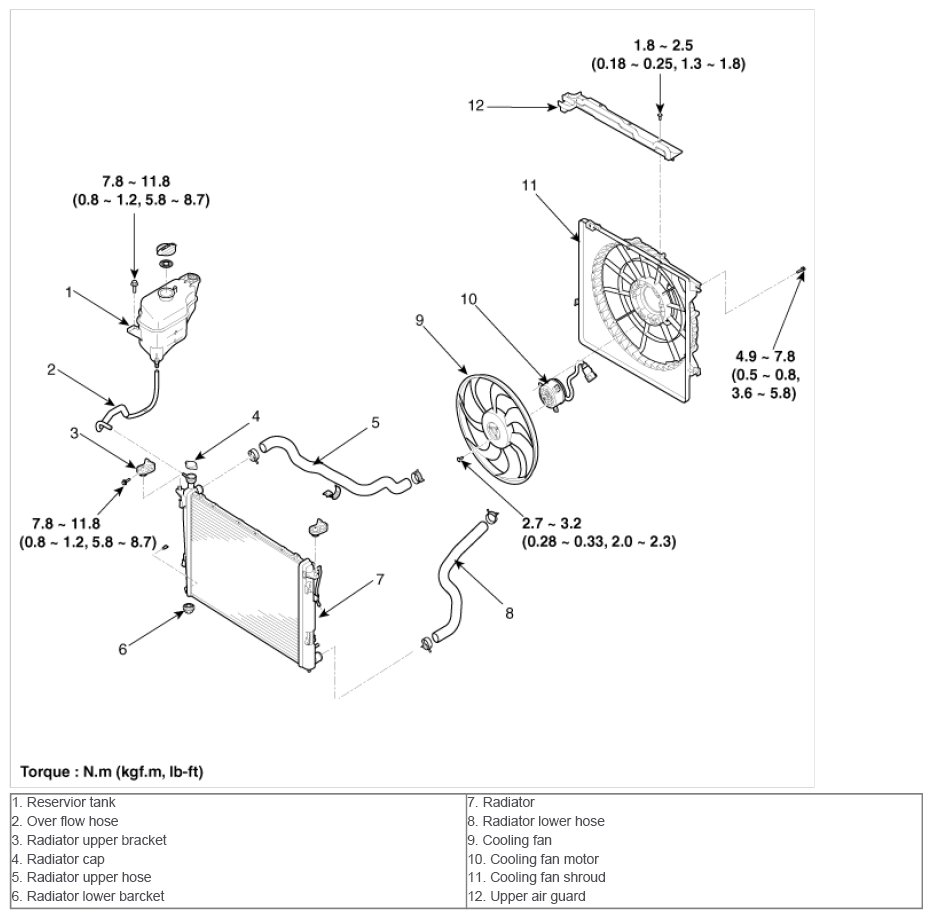

Fig 2: Cooling System Replacement Components With Torque Specifications (2 Of 2)
G09267262Courtesy of HYUNDAI MOTOR AMERICA
