Repair Procedures: Installation

  1. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper.
  2. Install the dynamic damper.
  3. Install the dynamic damper band (A).
  4. Using the SST (09495-3K000), secure the TJ boot bands (B).

    Clearance (A):  2.0 mm (0.0787 in.) or less

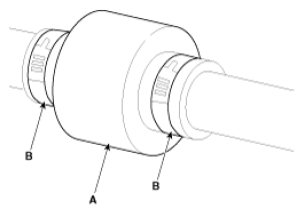

    Fig 1: TJ Boot Bands And Dynamic Damper Band
    G09267787Courtesy of HYUNDAI MOTOR AMERICA
  5. Install the TJ joint assembly.

    Refer to TJ JOINT .

  6. Install the front driveshaft.

    Refer to FRONT DRIVESHAFT .

  7. Check the front alignment.

    Refer to FRONT ALIGNMENT .
