Repair Procedures: Removal

Remove the front driveshaft.
Refer to FRONT DRIVESHAFT .
Remove the TJ joint assembly.
Refer to TJ JOINT .
Remove the Dynamic damper.
Refer to DYNAMIC DAMPER .
Using a plier or flat-tipped (-) screwdriver, remove the BJ boot bands (A).

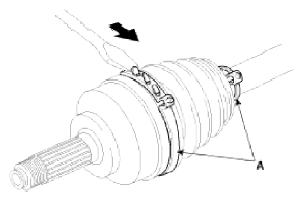

Fig 1: Removing BJ Boot Bands
Courtesy of HYUNDAI MOTOR AMERICA
Remove the BJ boot.
Install in the reverse order of removal.
NOTE:
- Do not disassemble the BJ assembly.
- Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
- The boot band should be replaced with a new one.
Check the front alignment.
Refer to FRONT ALIGNMENT .
