Repair Procedures: Removal

  1. Remove the tailgate trim.

    (Refer to TAIL GATE TRIM .

  2. Remove the tailgate back panel.

    (Refer to TAIL GATE BACK PANEL .

  3. Disconnect the connector (A) from the back view camera.
  4. Remove the back view camera (B) after loosening the screws (2EA).

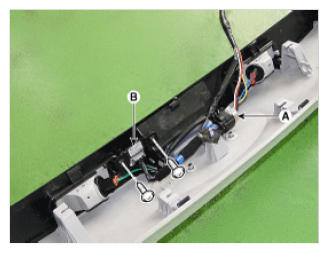

Fig 1: Back View Camera And Connector
G09269073Courtesy of HYUNDAI MOTOR AMERICA
