Chart 4

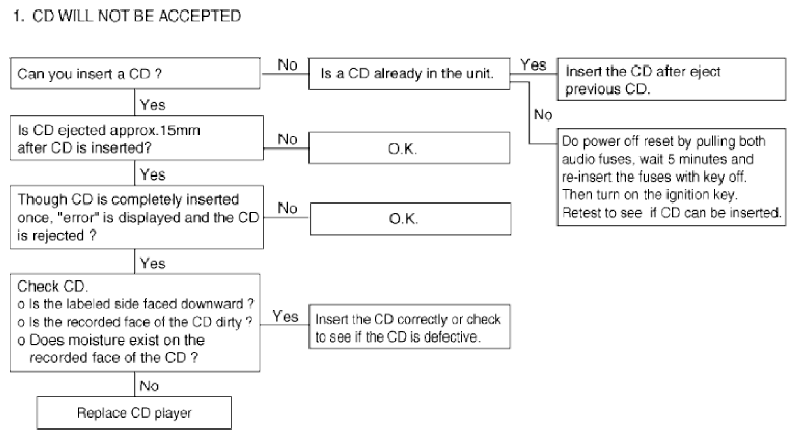

Fig 1: Customer Complaint Analysis Troubleshooting Chart 4 (1 Of 4)
G09268406Courtesy of HYUNDAI MOTOR AMERICA

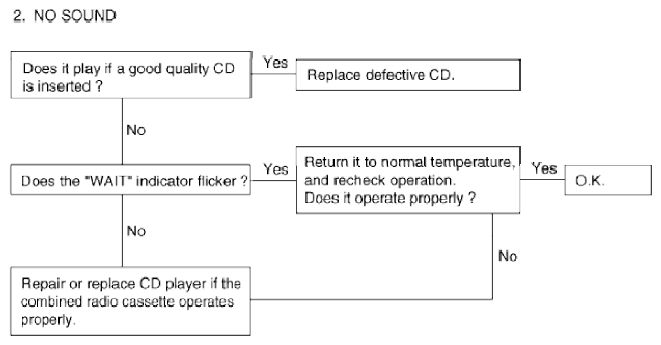

Fig 2: Customer Complaint Analysis Troubleshooting Chart 4 (2 Of 4)
G09268407Courtesy of HYUNDAI MOTOR AMERICA

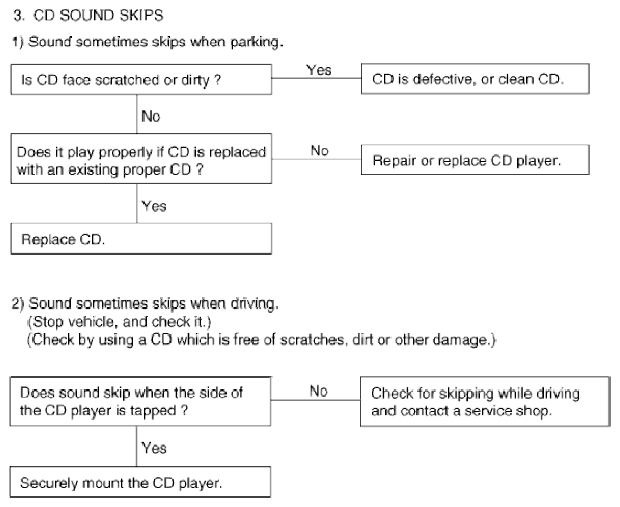

Fig 3: Customer Complaint Analysis Troubleshooting Chart 4 (3 Of 4)
G09268408Courtesy of HYUNDAI MOTOR AMERICA

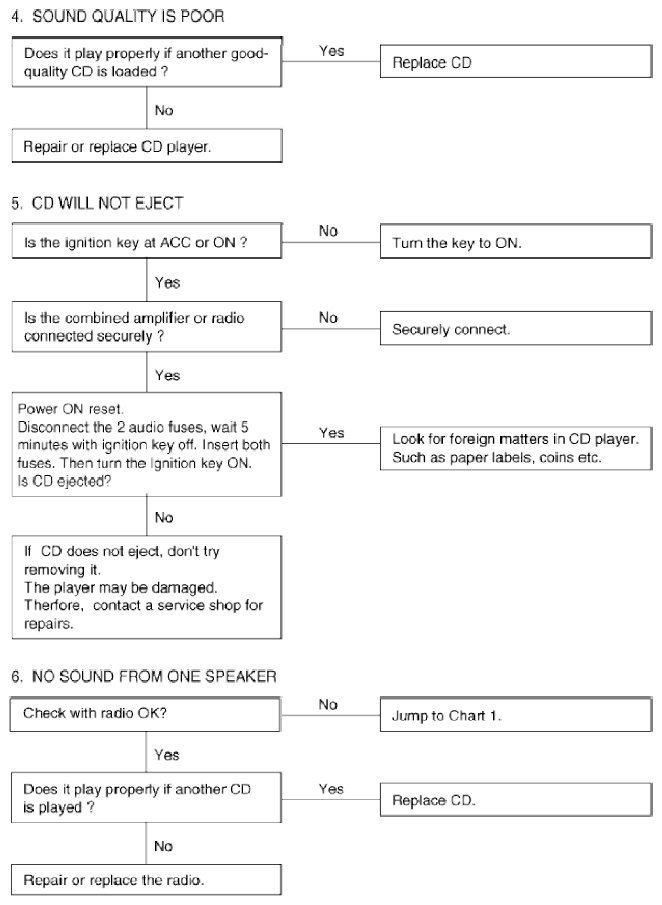

Fig 4: Customer Complaint Analysis Troubleshooting Chart 4 (4 Of 4)
G09268409Courtesy of HYUNDAI MOTOR AMERICA
