Home >> Hyundai >> 2013 >> Santa Fe XL Base >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Audio System >> Troubleshooting >> Chart 1

Chart 1

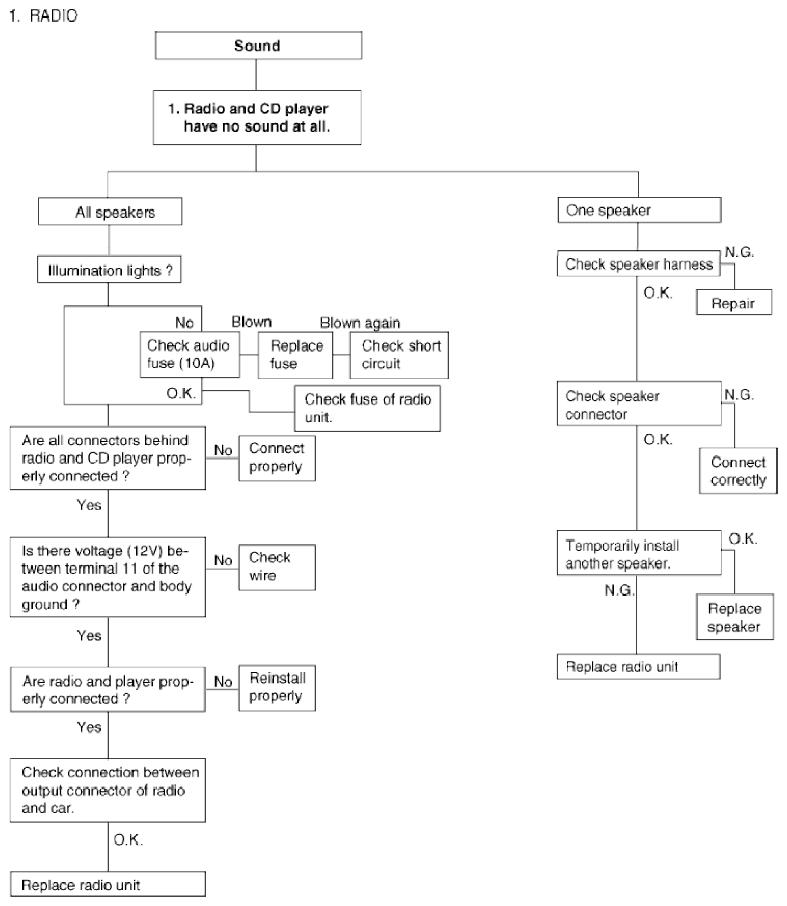

Fig 1: Customer Complaint Analysis Troubleshooting Chart 1 (1 Of 4)
G09268400Courtesy of HYUNDAI MOTOR AMERICA

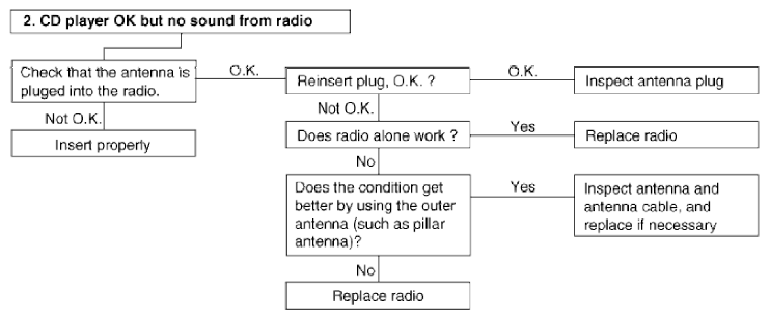

Fig 2: Customer Complaint Analysis Troubleshooting Chart 1 (2 Of 4)
G09268401Courtesy of HYUNDAI MOTOR AMERICA

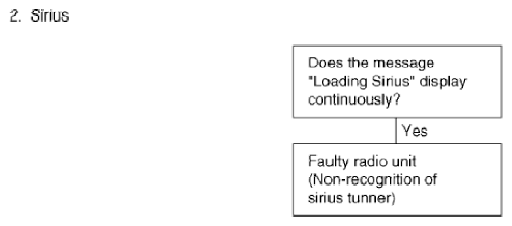

Fig 3: Customer Complaint Analysis Troubleshooting Chart 1 (3 Of 4)
G09268402Courtesy of HYUNDAI MOTOR AMERICA

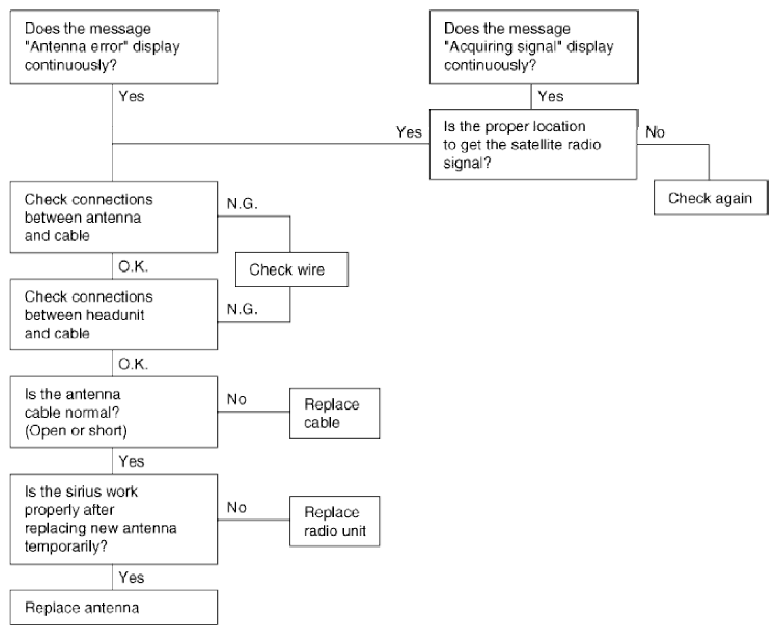

Fig 4: Customer Complaint Analysis Troubleshooting Chart 1 (4 Of 4)
G09268403Courtesy of HYUNDAI MOTOR AMERICA
