Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

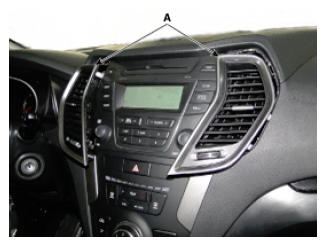

Remove the center air vent duct (A).

Fig 1: Identifying Center Air Vent Duct
Courtesy of HYUNDAI MOTOR AMERICA

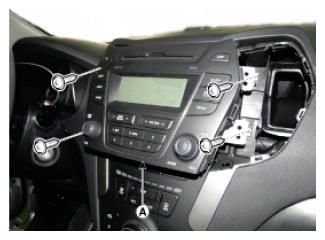

Separate the audio head unit (A) from crash pad after loosening the screws (4EA).

Fig 2: Identifying Audio Head Unit Screws
Courtesy of HYUNDAI MOTOR AMERICA

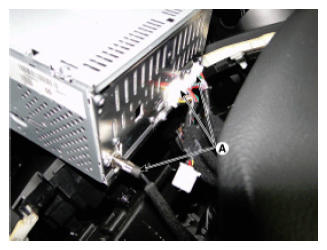

Remove the audio head unit (A) after disconnecting the connectors and cable.

Fig 3: Identifying Audio Head Unit
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: When the compact disc is not ejected, do not remove it forcibly.
