Components and Components Location: Components

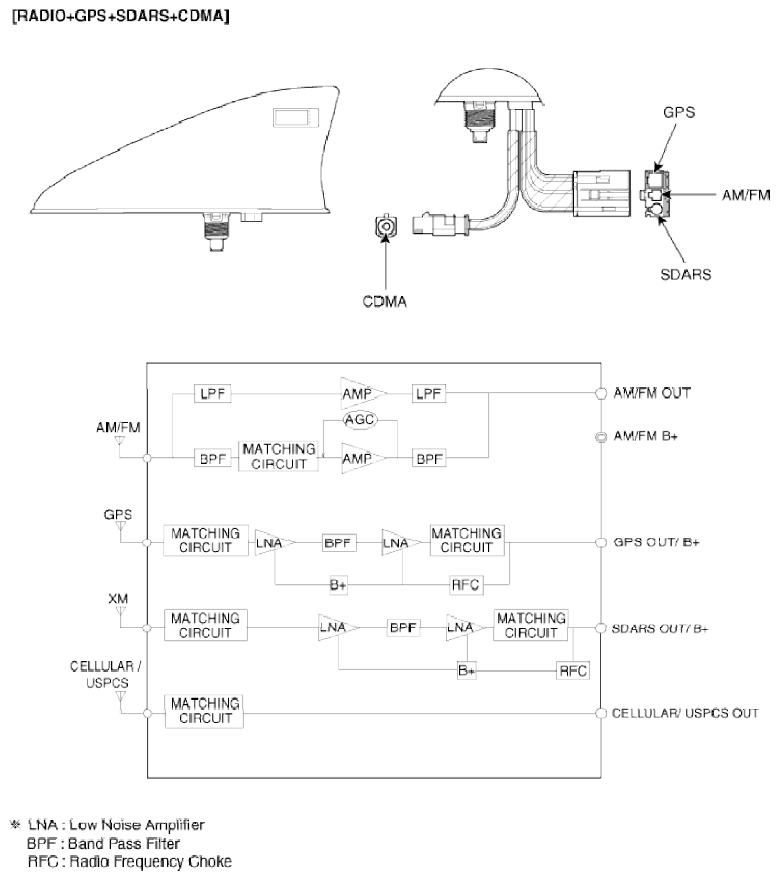

Fig 1: AM/FM - Circuit Diagram (1 Of 2)

G09268378

Courtesy of HYUNDAI MOTOR AMERICA

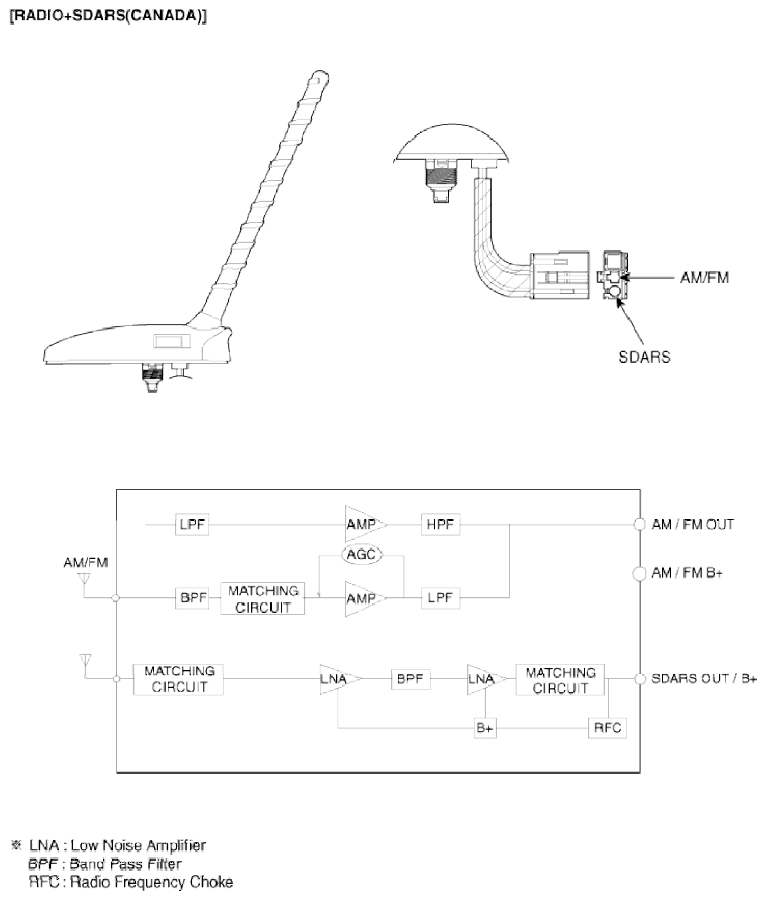

Fig 2: AM/FM - Circuit Diagram (2 Of 2)

G09268379

Courtesy of HYUNDAI MOTOR AMERICA
