Signal Waveform & Data

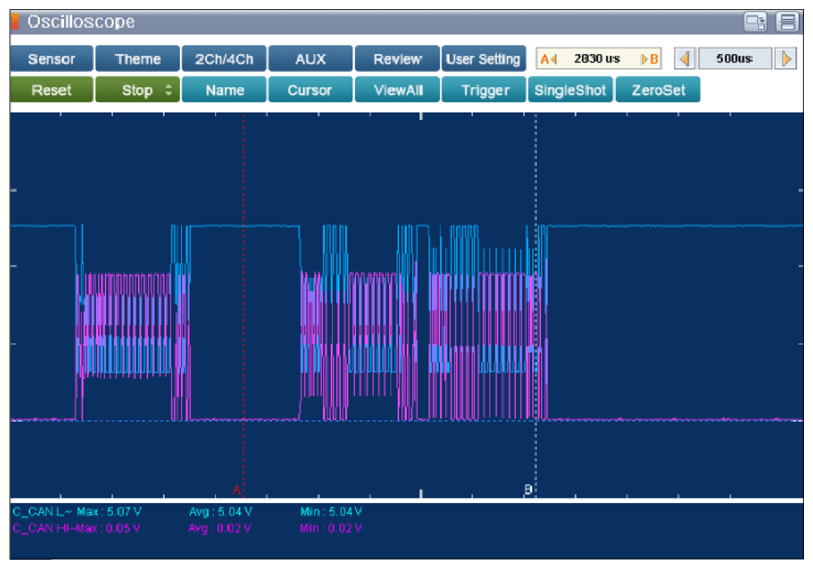

Fig 1: Display - C_CAN Low & High Signal Waveform Screen
G09272587Courtesy of HYUNDAI MOTOR AMERICA

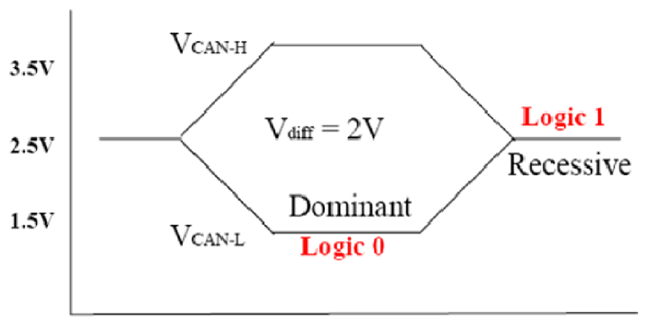

Fig 2: Display - C_CAN BUS Voltage Level (High Speed CAN)
G09272588Courtesy of HYUNDAI MOTOR AMERICA
