Circuit Diagram

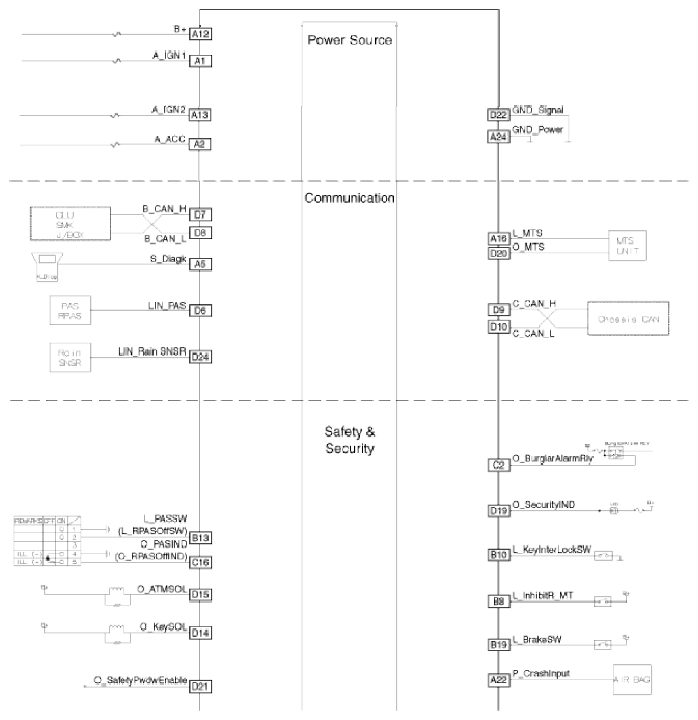

Fig 1: Power Source, Communication And Safety, Security - Circuit Diagram (1 Of 3)
G09268573Courtesy of HYUNDAI MOTOR AMERICA

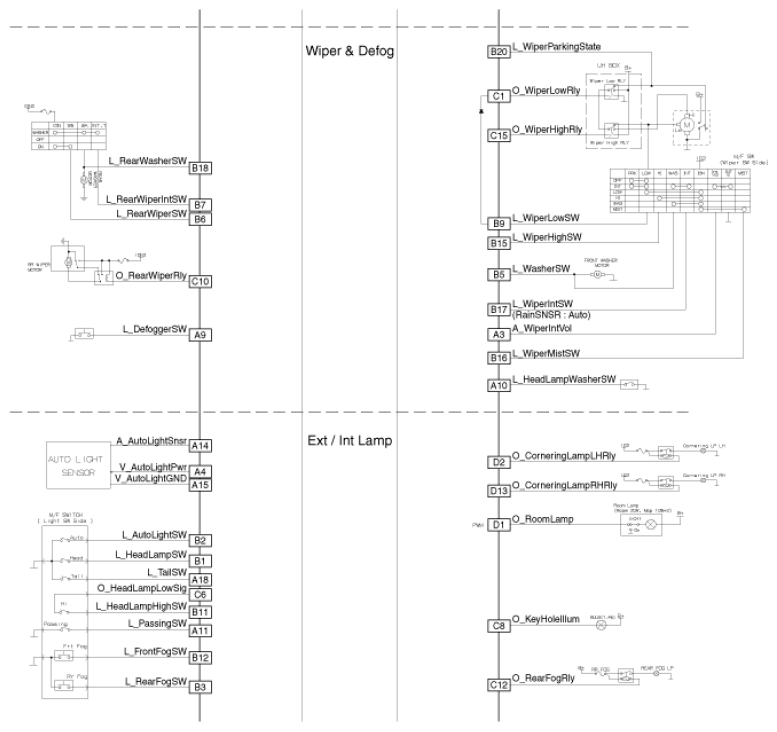

Fig 2: Power Source, Communication And Safety, Security - Circuit Diagram (2 Of 3)
G09268574Courtesy of HYUNDAI MOTOR AMERICA

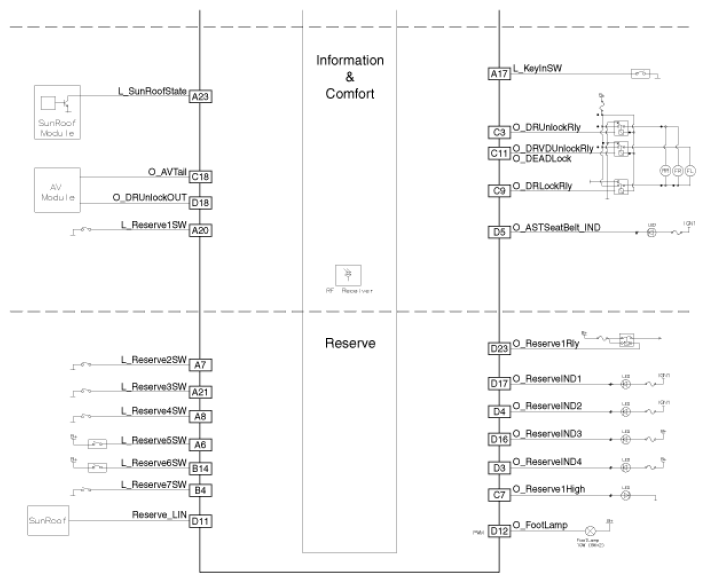

Fig 3: Power Source, Communication And Safety, Security - Circuit Diagram (3 Of 3)
G09268575Courtesy of HYUNDAI MOTOR AMERICA
