Repair Procedures: Removal

  1. Remove the ignition coil.

    (Refer to REMOVAL )

  2. Using a spark plug wrench, remove the spark plug(A).
    NOTE:
    • Be careful that no contaminates enter into spark plug holes.

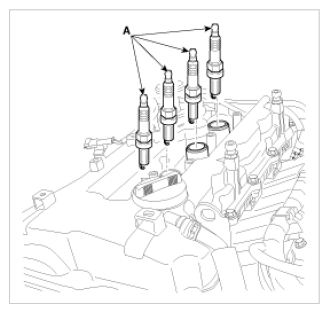

    Fig 1: Identifying Spark Plug
    G09367287Courtesy of HYUNDAI MOTOR AMERICA
