Components and Components Location: Components

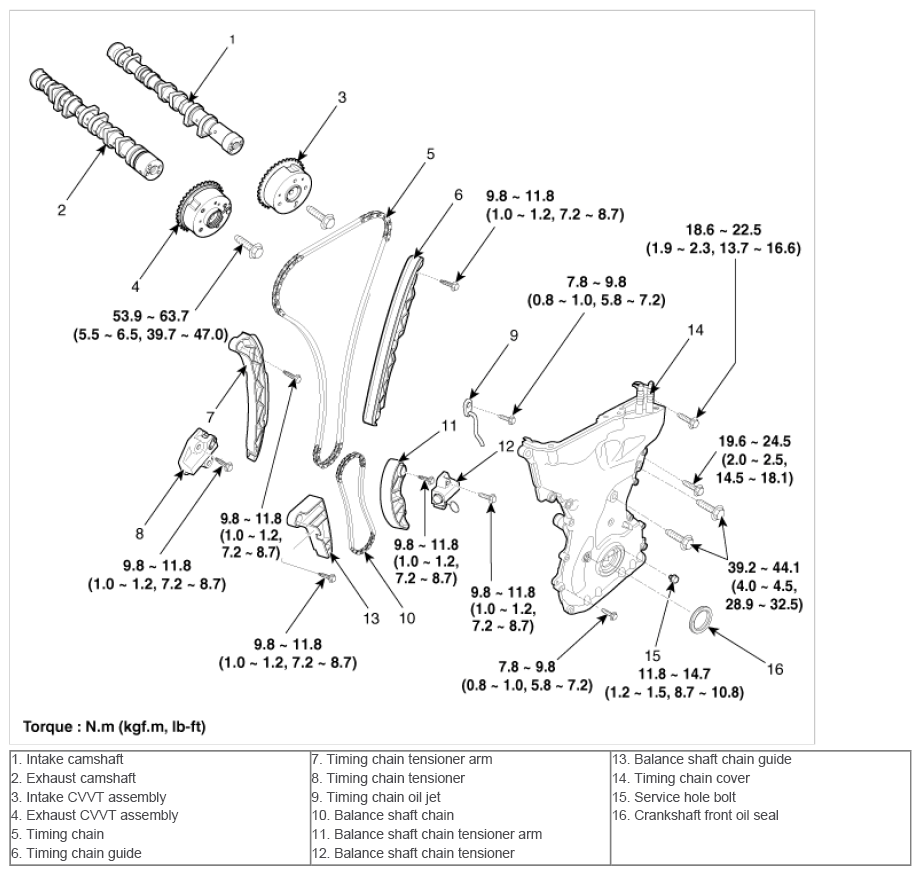

Fig 1: Timing System Replacement Components With Torque Specifications

G09364524

Courtesy of HYUNDAI MOTOR AMERICA
