Repair Procedures: Disassembly

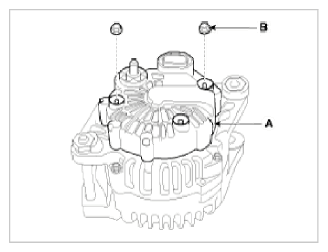

Remove the alternator cover (A) using a screw driver after loosening the nuts (B).

Fig 1: Identifying Alternator Cover And Nuts
Courtesy of HYUNDAI MOTOR AMERICA

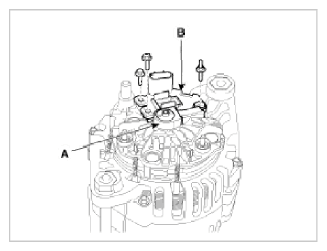

Remove the slip ring guide (A) and then loosen the mounting bolts and disconnect the brush holder assembly (B).

Fig 2: Identifying Slip Ring Guide And Brush Holder Assembly
Courtesy of HYUNDAI MOTOR AMERICA

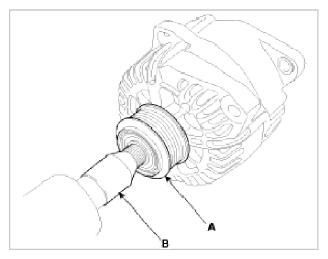

Remove the pulley (A) using the SST (09373-27000) (B).

Fig 3: Removing Pulley Using SST
Courtesy of HYUNDAI MOTOR AMERICA

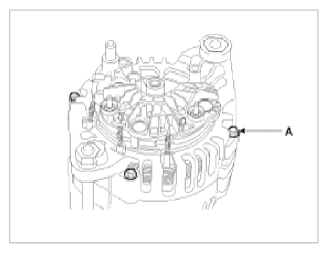

Loosen the 4 through bolts (A).

Fig 4: Identifying Through Bolts
Courtesy of HYUNDAI MOTOR AMERICA

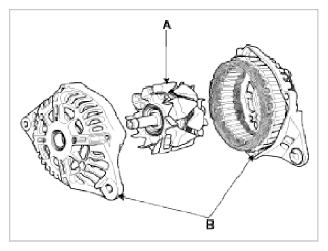

Disconnect the rotor (A) and cover (B).

Fig 5: Identifying Rotor And Cover
Courtesy of HYUNDAI MOTOR AMERICA
Reassembly is the reverse order of disassembly.
