Components and Components Location: Components

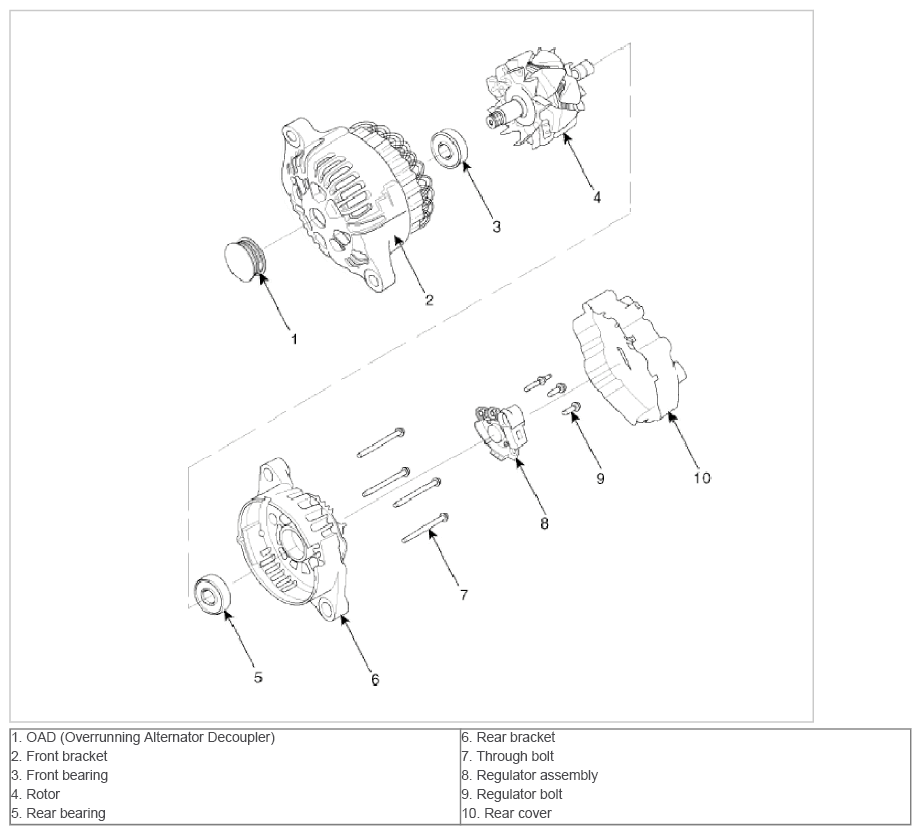

Fig 1: Exploded View Of Regulator Assembly

G09364820

Courtesy of HYUNDAI MOTOR AMERICA
