Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    Refer to REAR DOOR TRIM .

  3. Remove the power window switch assembly (A) after loosening the mounting screws (3EA).

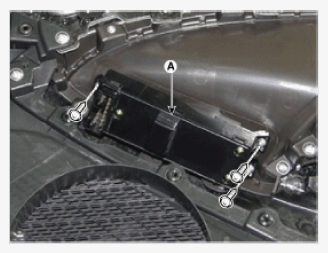

    Fig 1: Identifying Power Window Switch Assembly Mounting Screws (3EA)
    G09366371Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
    Fig 2: Continuity Reference Chart
    G09366372Courtesy of HYUNDAI MOTOR AMERICA
