Liftgate Open Switch

Disconnect the negative (-) battery terminal.
Remove the Liftgate trim.
Refer to TAIL GATE TRIM .
Remove the Liftgate back panel.
Refer to TAIL GATE BACK PANEL .
Loosen the Liftgate switch mounting screws (2EA).

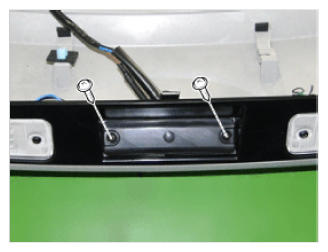

Fig 1: Identifying Liftgate Switch Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Remove the Liftgate switch (A) after separating the license lamp wiring.

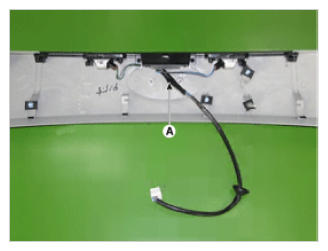

Fig 2: Identifying Liftgate Switch
Courtesy of HYUNDAI MOTOR AMERICA
