Liftgate Switch

  1. Check for continuity between the Liftgate latch terminals.

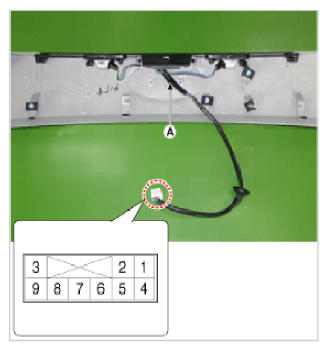

    Fig 1: Identifying Liftgate Latch Terminals
    G09366109Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, inspect the switch
    Fig 2: Identifying Liftgate Latch Terminals Continuity Chart
    G09366110Courtesy of HYUNDAI MOTOR AMERICA
