Components and Components Location: Components

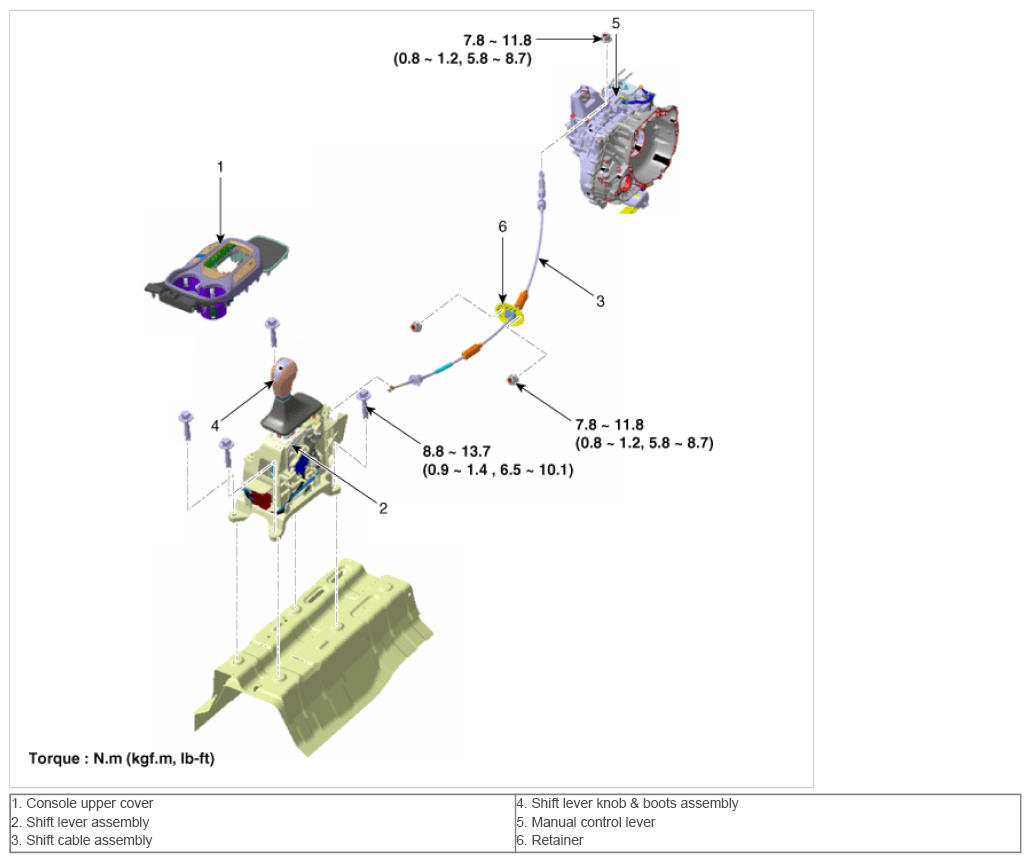

Fig 1: Shift Cable Related Replacement Components With Torque Specifications

G09368655

Courtesy of HYUNDAI MOTOR AMERICA
