Repair procedures: Replacement

Prior to replacing the 4WD ECU, check the 4WD ECU's clutch clearing with the GDS tool.
Refer to ADJUSTMENT .
Disconnect the battery negative cable from the battery
Disconnect the 4WD ECU connector (A).

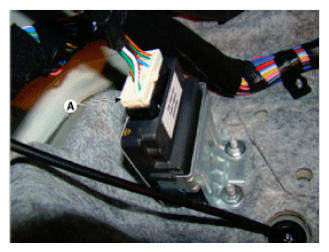

Fig 1: 4WD ECU Connector
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the nuts (A) and then remove the 4WD ECU.
Tightening torque:

9.8 ~ 11.8 N.m (1.0~1.2 kgf.m, 7.2~8.7 lb-ft)

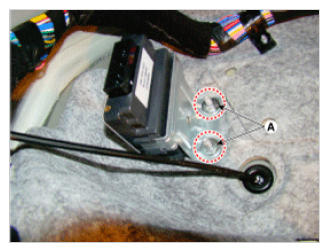

Fig 2: 4WD ECU Mounting Nuts
