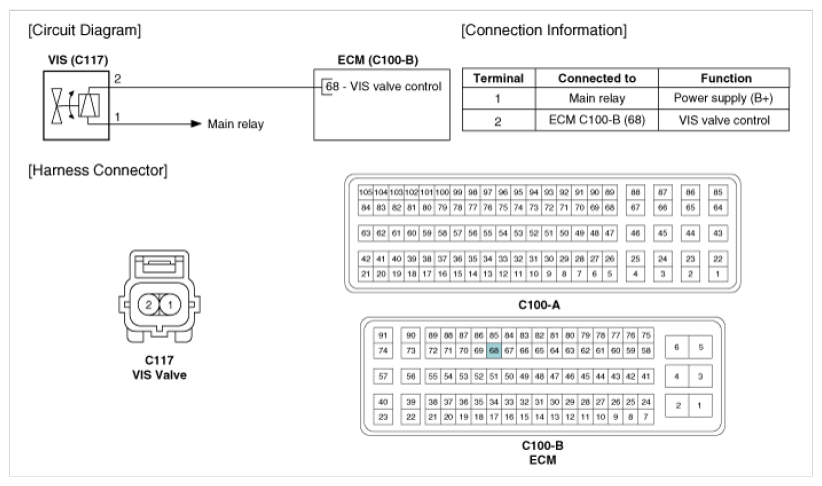

Home >> Hyundai >> 2013 >> Santa Fe Sport Base, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L >> Variable Intake Solenoid (VIS) Valve >> Schematic Diagrams >> Circuit Diagram
