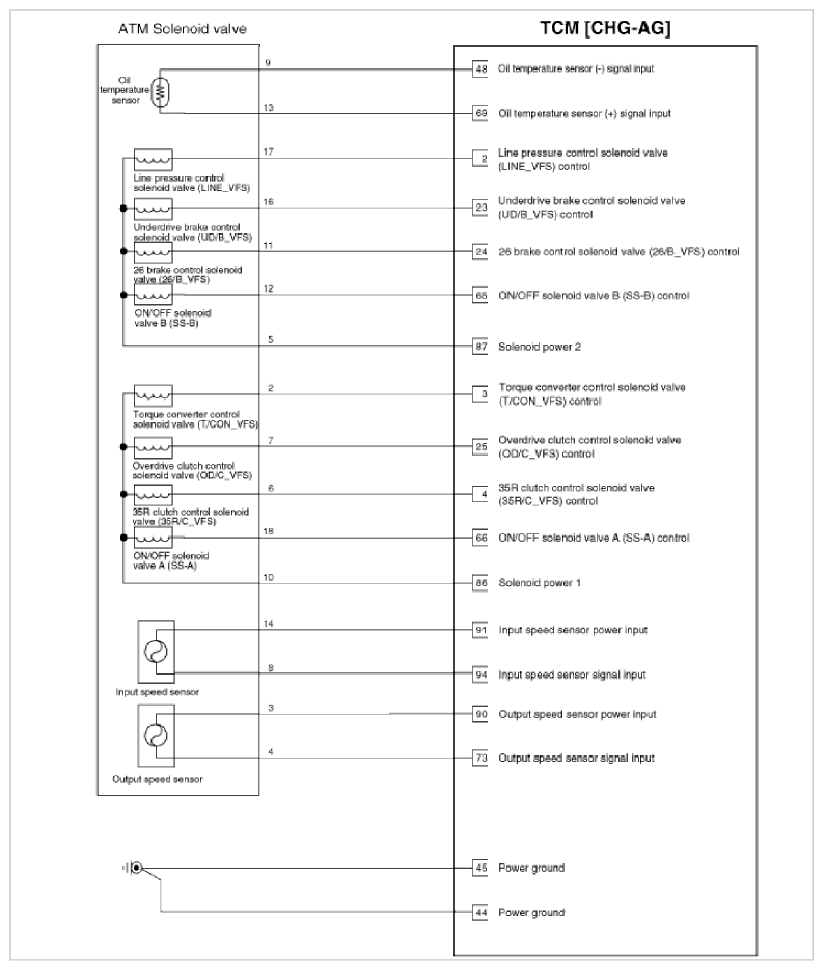

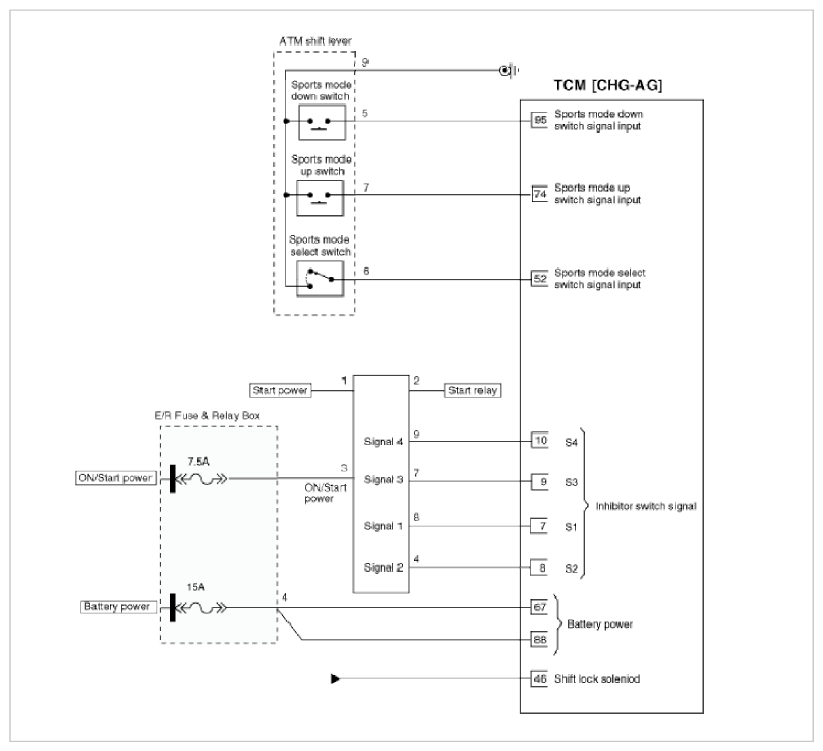

Home >> Hyundai >> 2013 >> Santa Fe Sport 2.0T, AWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.0L >> Transaxle Control Module (TCM) >> Schematic Diagram >> Circuit Diagram
