Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

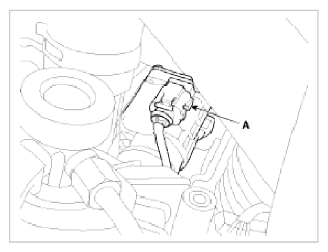

  2. Disconnect the EWGA connector(A).
    Fig 1: Identifying EWGA Connector
    G09365071Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the shaft link assembly (B) after removing the C-ring (A).
    Fig 2: Identifying Shaft Link Assembly And C-Ring
    G09365072Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the EWGA after removing the bolts(A).
    Fig 3: Identifying EWGA Bolts
    G09365073Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: When carrying the turbo charger, do not hold the rod of the turbo charge to prevent bending the rod.
