Home >> Hyundai >> 2013 >> Santa Fe Sport 2.0T, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Electric WGT Control Actuator >> Components and Components Location >> Components

Components and Components Location: Components

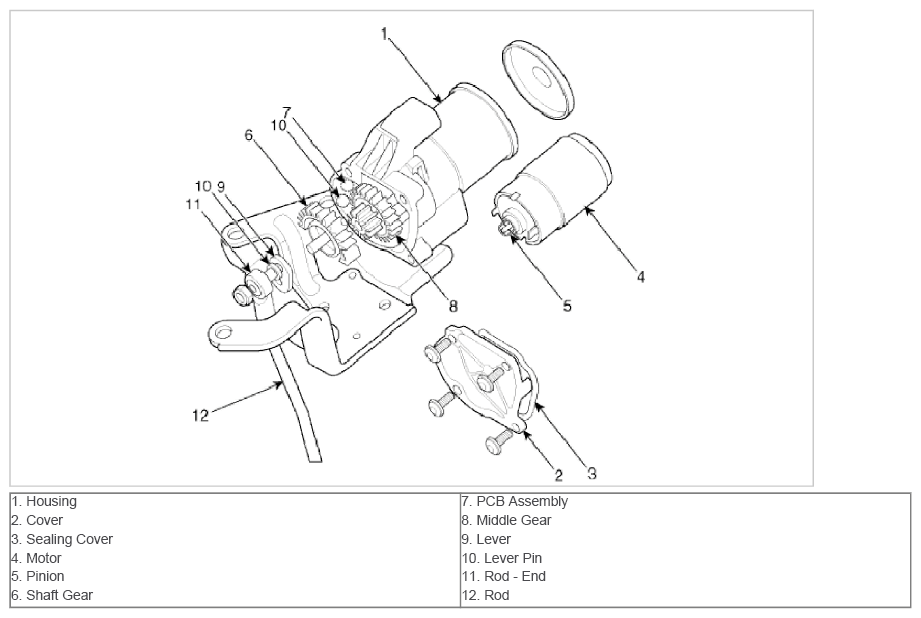

Fig 1: Identifying Electric WGT Control Actuator Components

G09365067

Courtesy of HYUNDAI MOTOR AMERICA
