Door Outside Handle

  1. Disconnect the negative (-) battery terminal.
  2. Remove the door outside handle cover (A) after separating the plug hole (B) from the door and loosening the mounting bolt.

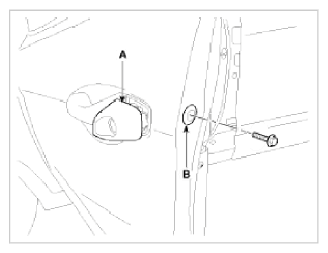

    Fig 1: Identifying Door Outside Handle Cover, Hole And Mounting Bolt
    G09366104Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the outside handle (A) by sliding it rearward.

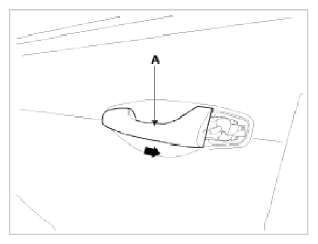

    Fig 2: Identifying Outside Handle
    G09366105Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the door outside handle connector(A).

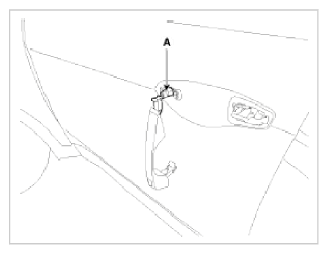

    Fig 3: Identifying Door Outside Handle Connector
    G09366106Courtesy of HYUNDAI MOTOR AMERICA
