Smart Key Code Saving

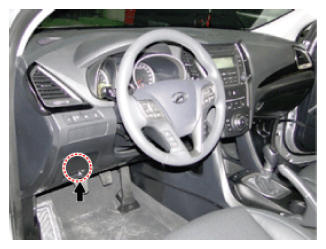

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA

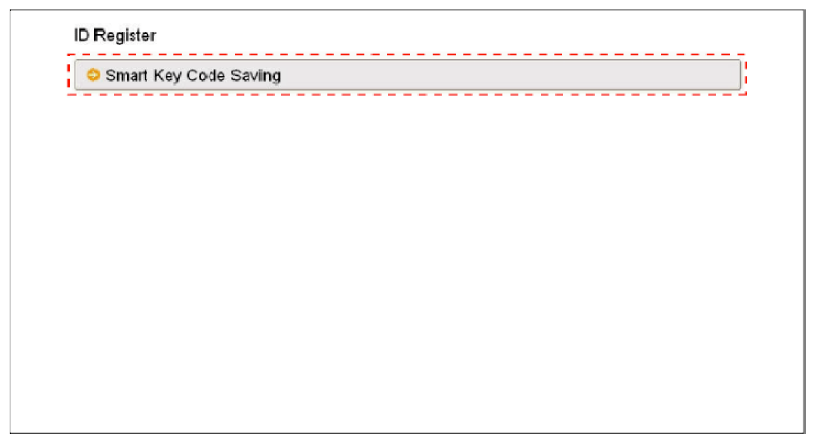

Select the vehicle model and then do "Smart key code saving".

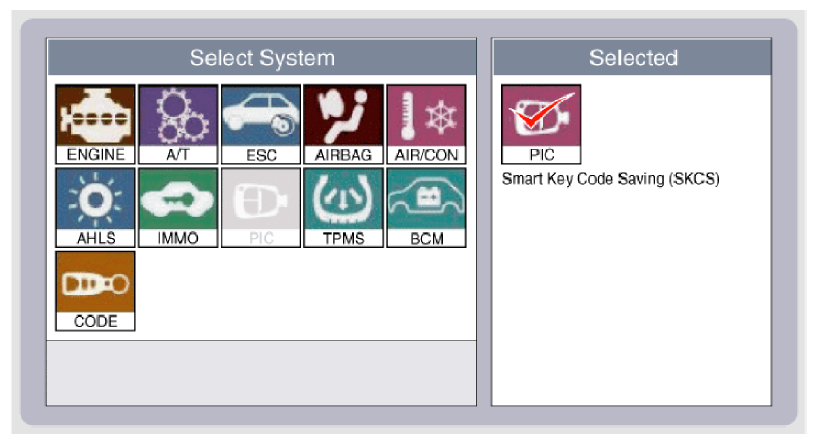

Fig 2: Display - Smart Key Code Saving (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Display - Smart Key Code Saving (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

Fig 4: Identifying Engine Start/Stop Button
Courtesy of HYUNDAI MOTOR AMERICA
After having the teaching smart key, push "ENTER" key.

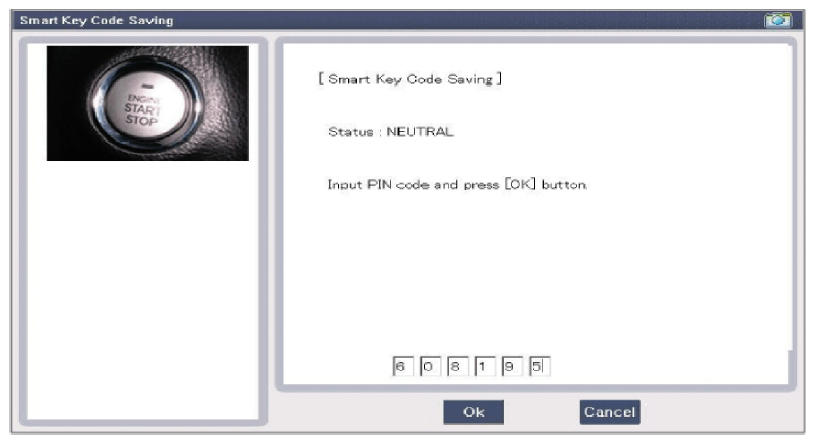

Input the "Pin code" for first key teaching.

Fig 5: Display - Smart Key Coding Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA

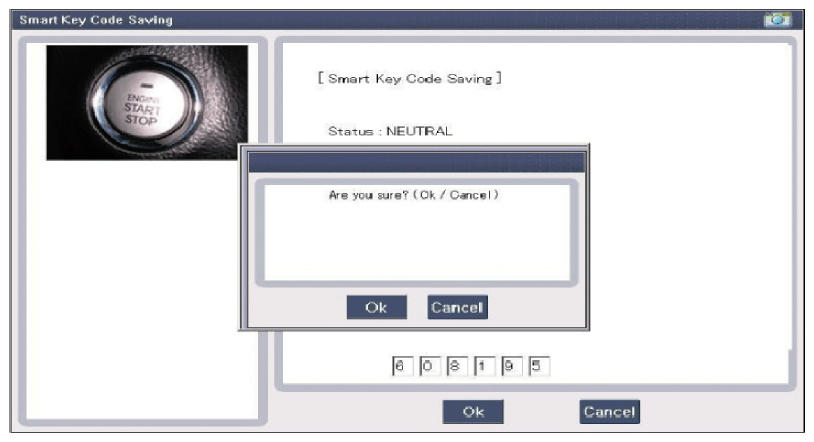

Fig 6: Display - Smart Key Coding Saving Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA

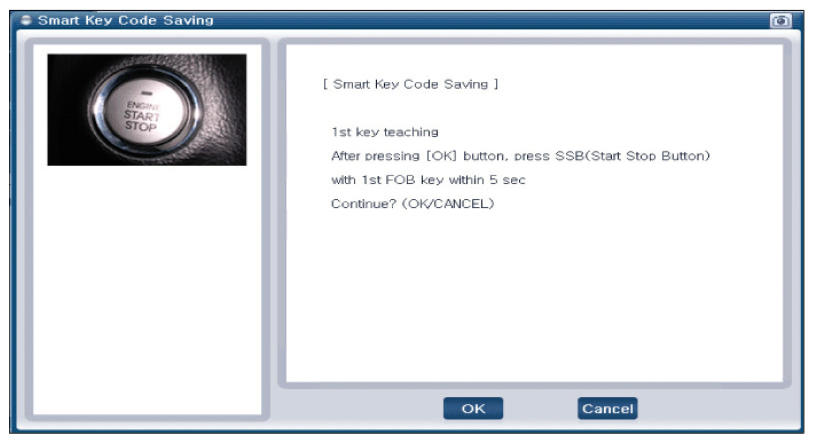

Press the SSB with smart key within 5 sec after pressing "OK".

Fig 7: Display - 1st Key Teaching Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA

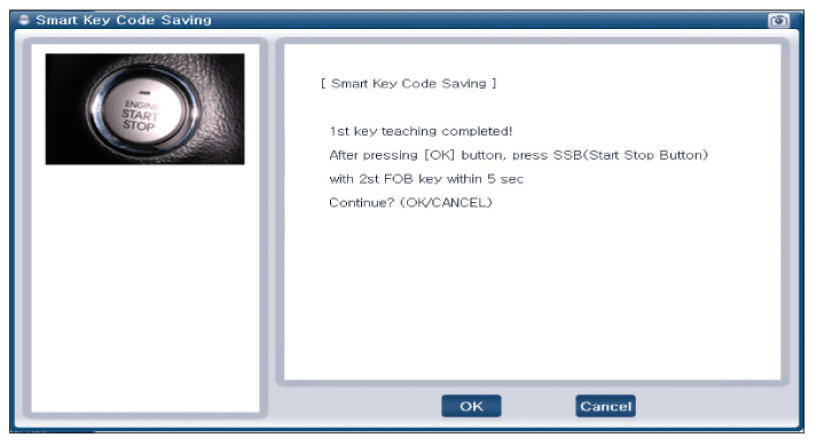

Confirm the message "First key teaching completed".

Fig 8: Display - 1st Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 9: Display - 1st Key Teaching Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA

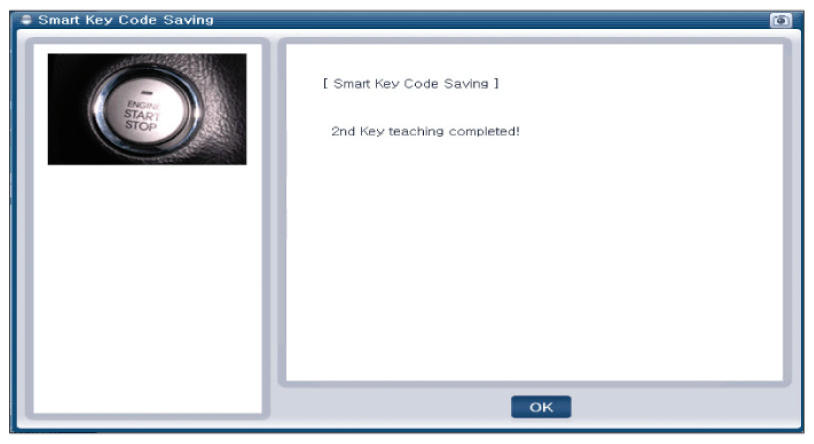

Confirm the message "Second key teaching completed".

Fig 10: Display - 2nd Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA

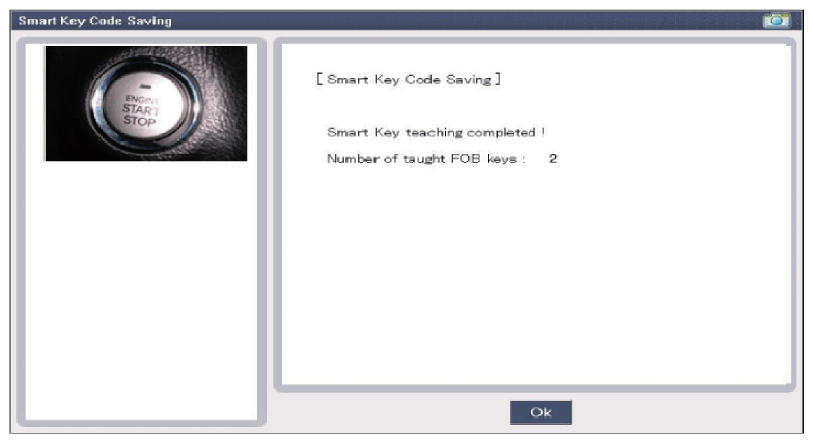

Then the screen will be shown as below when key teaching process is completed.

Fig 11: Display - Smart Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
