Repair Procedures: Removal

Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)
NOTE:
- Be careful not to damage to the hub bolts when removing the front wheel and tire (A).

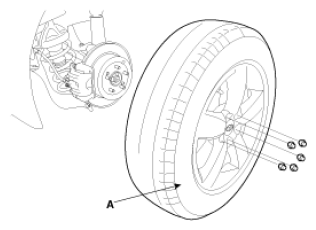

Fig 1: Front Wheel And Tire
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt & nut and then remove the lower arm (A).
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

Fig 2: Lower Arm
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front lower arm (C) and than loosen the bolts (A, B) & nuts.
Tightening torque:
1. 117.7 ~ 137.3 N.m (12.0 ~ 14.0 kgf.m, 86.8 ~ 101.3 lb-ft)
2. 156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

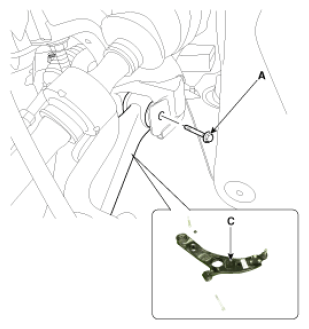

Fig 3: Front Lower Arm And Bolts
Courtesy of HYUNDAI MOTOR AMERICA

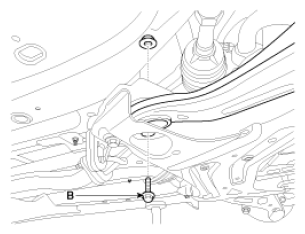

Fig 4: Front Lower Arm, Bolts And Nut
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
Check the front alignment.
(Refer to "FRONT ALIGNMENT ")
