Components and Components Location: Component

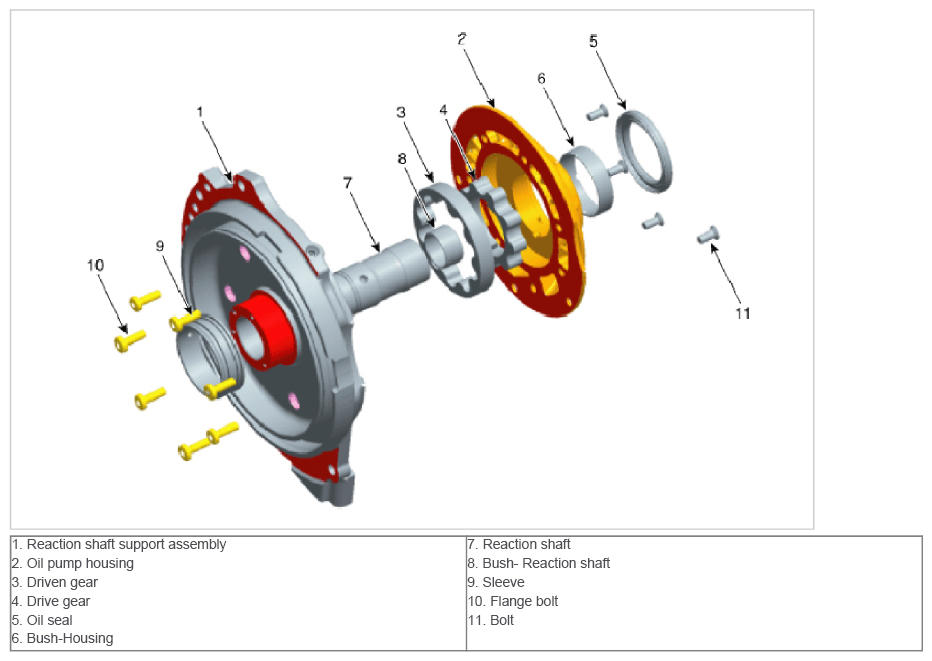

Fig 1: Exploded View Of Oil Pump

G09267628

Courtesy of HYUNDAI MOTOR AMERICA
