Components And Components Location: Components

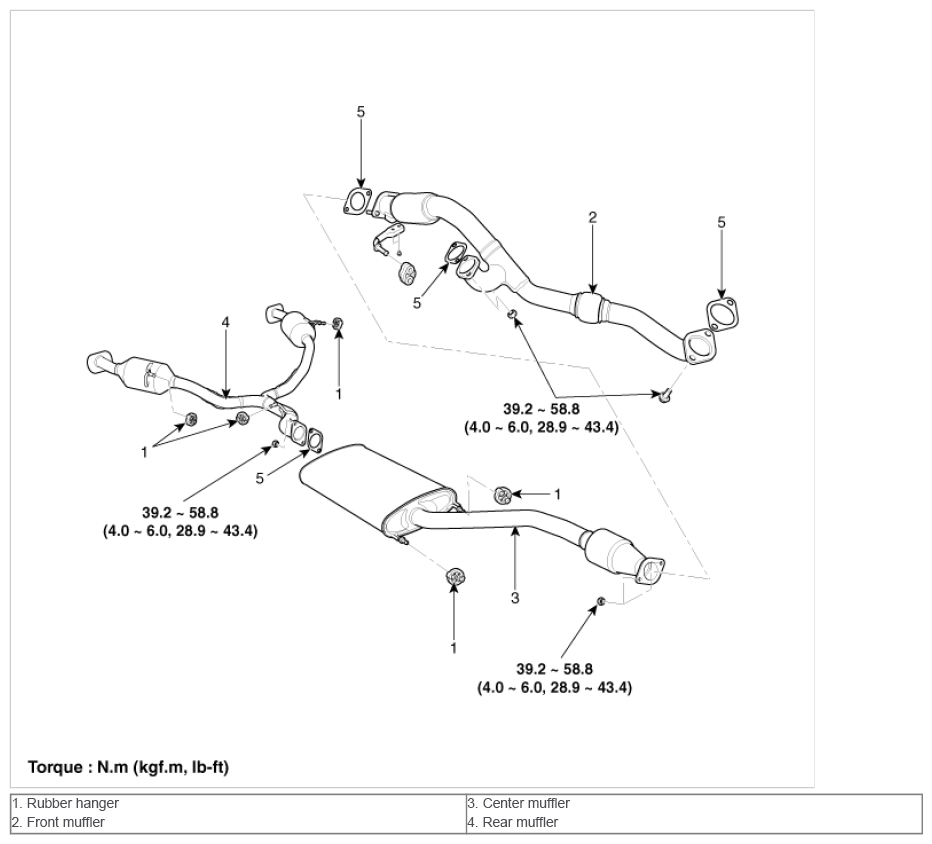

Fig 1: Rubber Hanger, Front Muffler, Center Muffler, Rear Muffler And Mounting Bolt With Torque Specification

G09267361

Courtesy of HYUNDAI MOTOR AMERICA
