Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the starter cover (A).

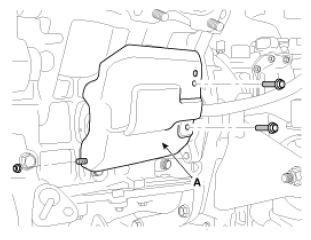

    Fig 1: Identifying Starter Cover And Mounting Bolt
    G09267404Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the starter cable (A) from the B terminal on the solenoid, then disconnect the connector (B) from the S terminal.
  4. Remove the 2 bolts holding the starter, then remove the starter (C).

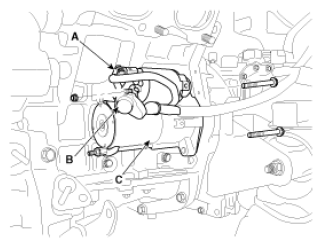

    Fig 2: Identifying Starter, Starter Cable And Connector
    G09267405Courtesy of HYUNDAI MOTOR AMERICA
