Components and Components Location: Components

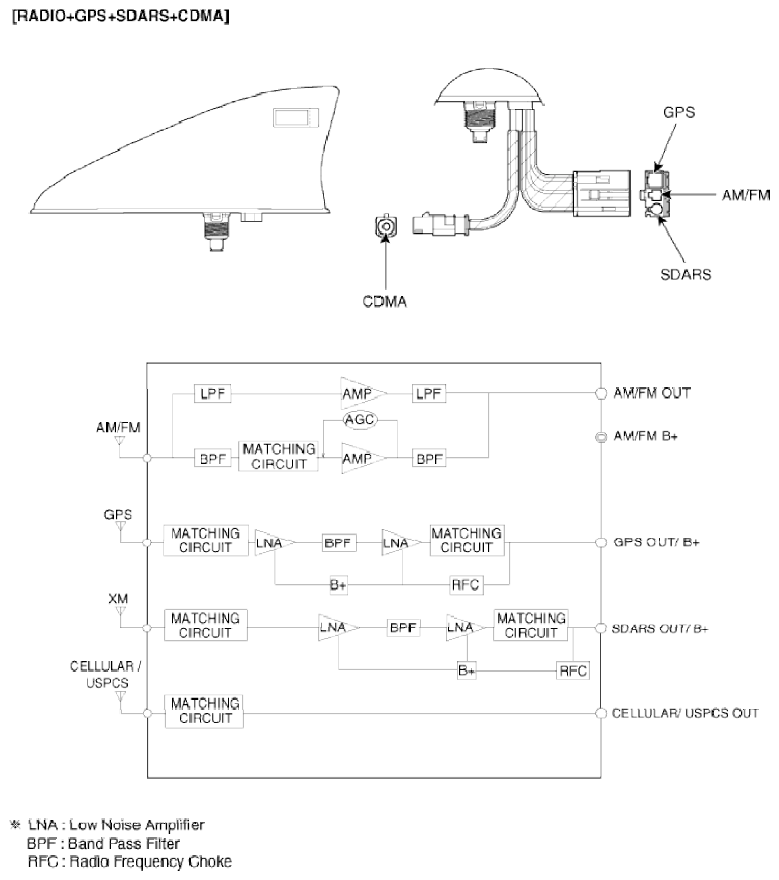

Fig 1: AM/FM, GPS And SDARS - Circuit Diagram (1 Of 2)
G09268464Courtesy of HYUNDAI MOTOR AMERICA

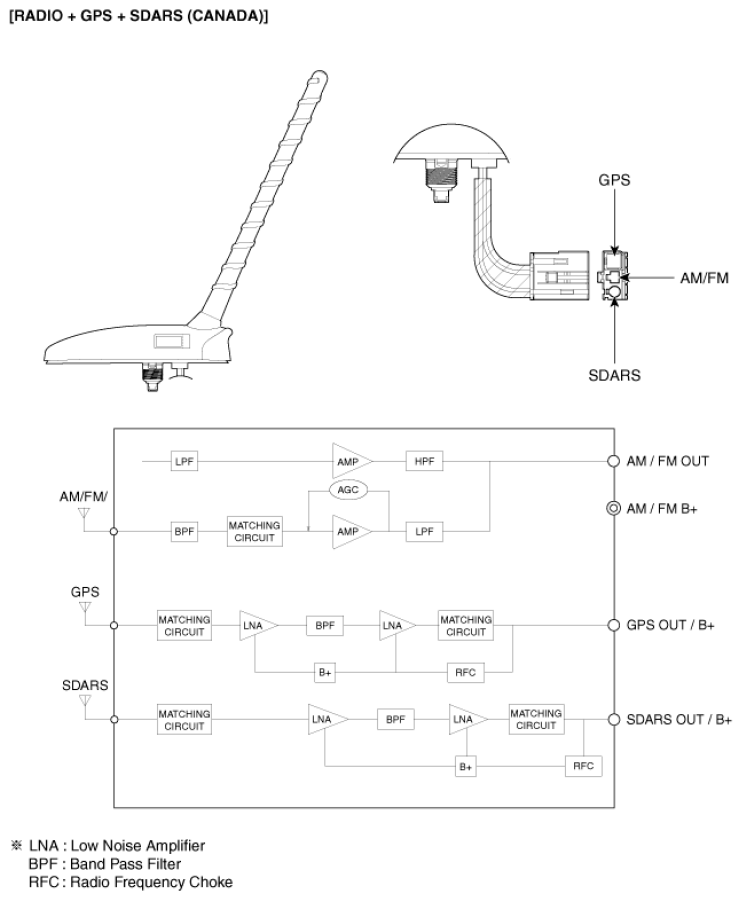

Fig 2: AM/FM, GPS And SDARS - Circuit Diagram (2 Of 2)
G09268465Courtesy of HYUNDAI MOTOR AMERICA
