Repair Procedures: Replacement

Prior to replacing the 4WD ECU, check the 4WD ECU's clutch clearing with the GDS tool.
(Refer to "ADJUSTMENT ")
Disconnect the battery negative cable from the battery
Disconnect the 4WD ECU connector (A).

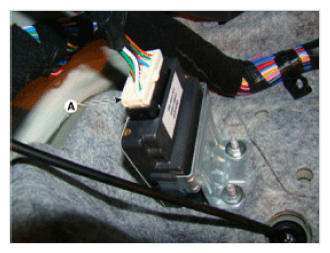

Fig 1: 4WD ECU Connector
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the nuts (A) and then remove the 4WD ECU.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

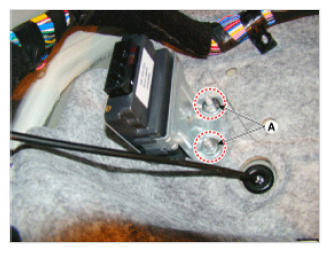

Fig 2: 4WD ECU Mounting Nuts
