Home >> Hyundai >> 2013 >> Santa Fe GLS, AWD >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Restraints - General Information >> Components and Components Location >> Components

Components and Components Location: Components

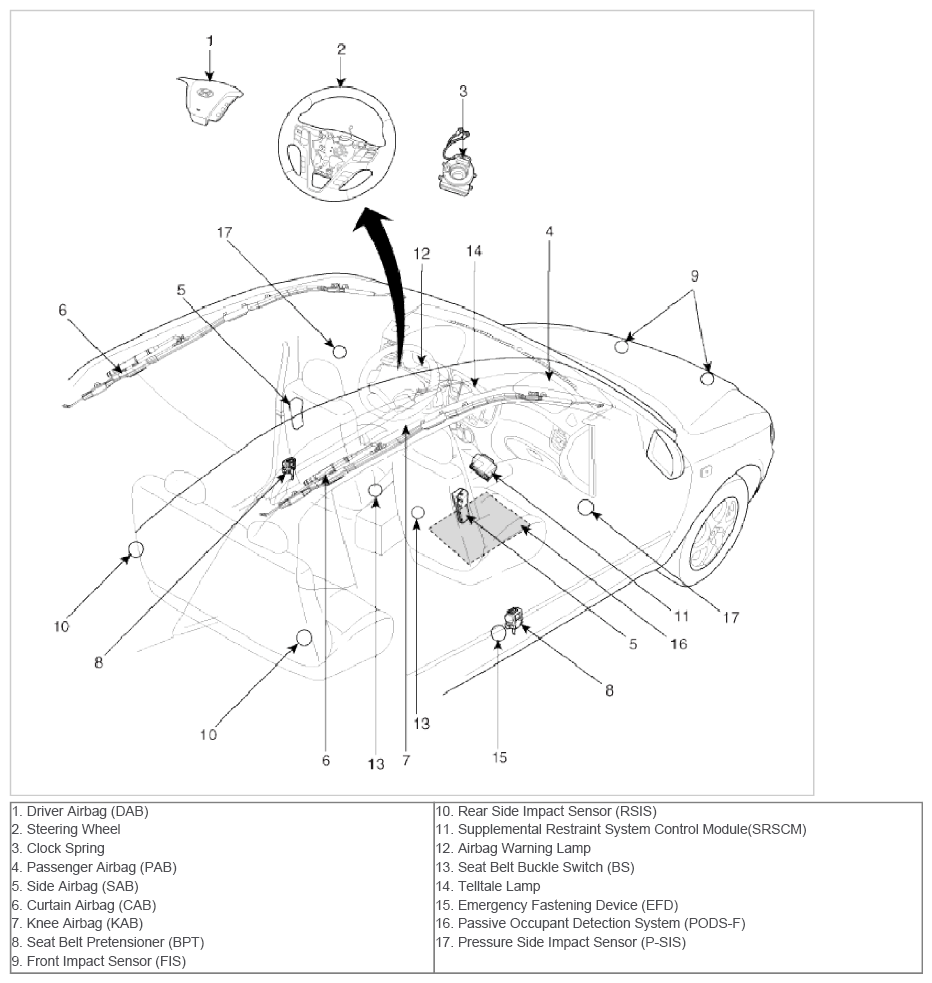

Fig 1: Identifying Restraint Components

G09268075

Courtesy of HYUNDAI MOTOR AMERICA
