Components And Components Location: Components

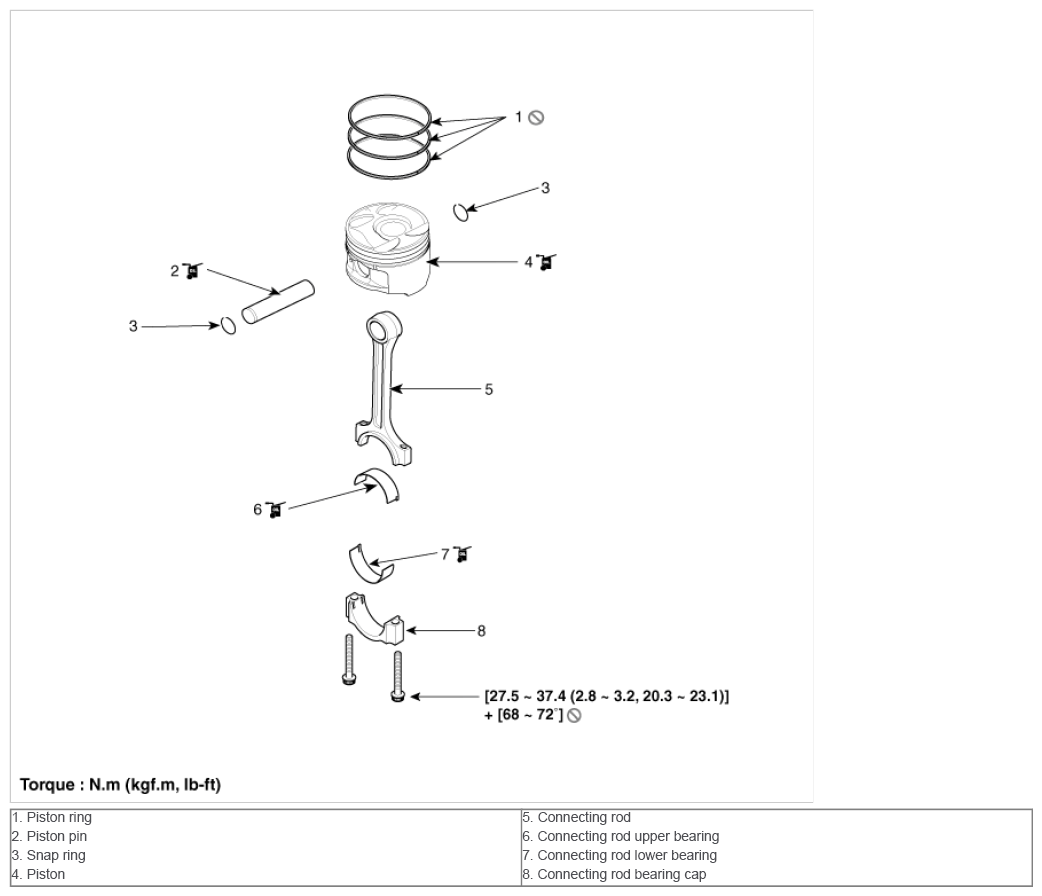

Fig 1: Piston And Connecting Rod Replacement Components With Torque Specifications

G09270660

Courtesy of HYUNDAI MOTOR AMERICA
