Home >> Hyundai >> 2013 >> Santa Fe GLS, AWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Block >> Components And Components Location >> Components

Components And Components Location: Components

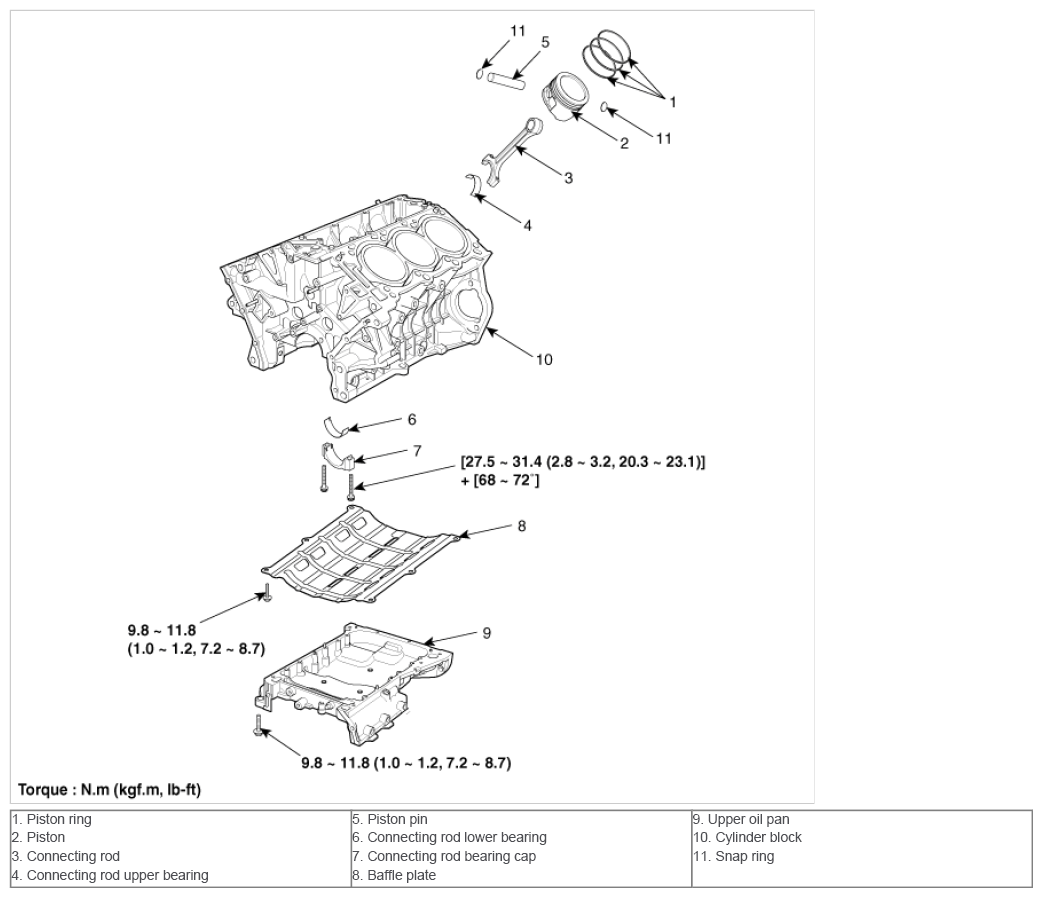

Fig 1: Cylinder Block Replacement Components With Torque Specifications (1 Of 2)
G09270648Courtesy of HYUNDAI MOTOR AMERICA

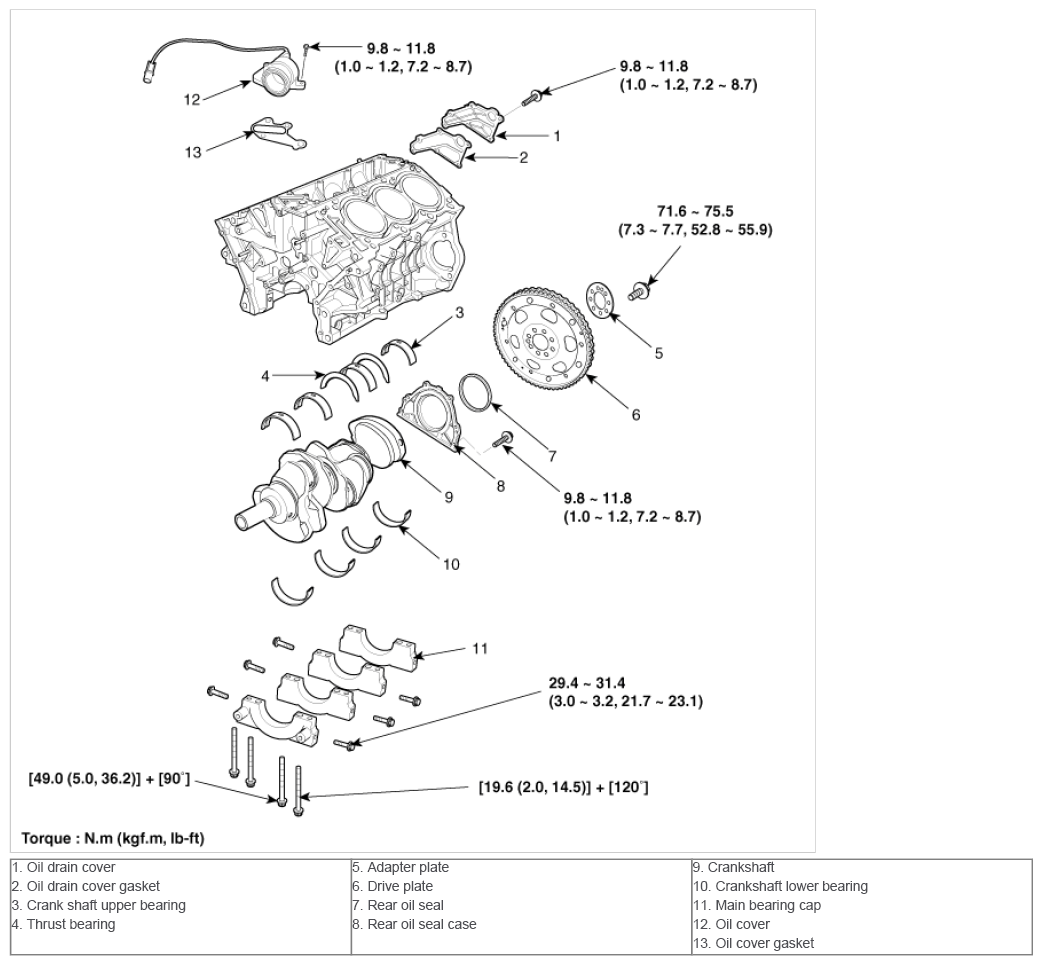

Fig 2: Cylinder Block Replacement Components With Torque Specifications (2 Of 2)
G09270649Courtesy of HYUNDAI MOTOR AMERICA
