Interior 3 Antenna

Disconnect the negative (-) battery terminal.

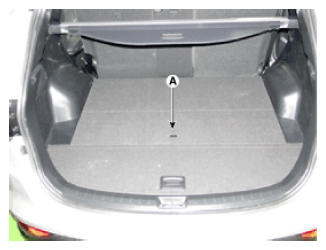

Remove the luggage covering mat (A).

Fig 1: Identifying Luggage Covering Mat
Courtesy of HYUNDAI MOTOR AMERICA

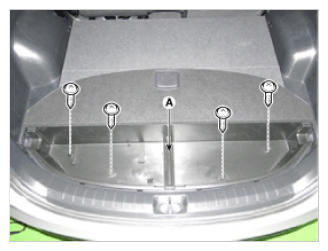

Remove the luggage floor box (A) after loosening the screws (4EA).

Fig 2: Identifying Luggage Floor Box
Courtesy of HYUNDAI MOTOR AMERICA

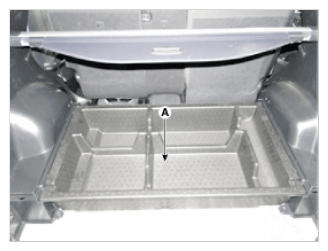

Remove the luggage tray box (A).

Fig 3: Identifying Luggage Tray Box
Courtesy of HYUNDAI MOTOR AMERICA

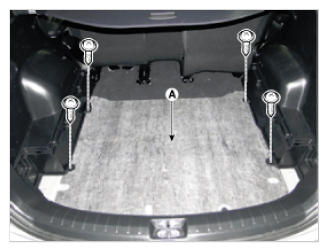

Remove the floor mat (A) after loosening the screws (4EA).

Fig 4: Identifying Floor Mat
Courtesy of HYUNDAI MOTOR AMERICA

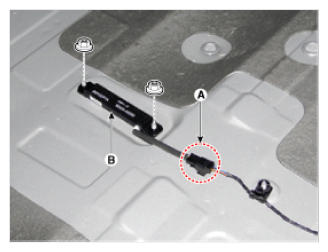

Remove the interior 3 antenna (B) after loosening the mounting nuts (2EA) and disconnecting the connector (A).

Fig 5: Identifying Interior 3 Antenna And Connector
Courtesy of HYUNDAI MOTOR AMERICA
