Hyundai
>>
2013
>>
Genesis Coupe 3.8 Track, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 3.8L
>>
Injector Drive Box (IDB)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

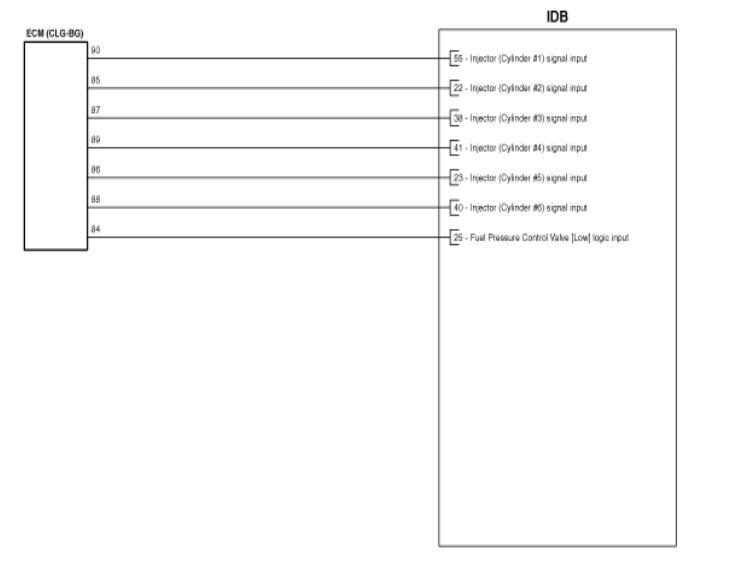

Fig 1: Injector Drive Box (IDB) Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

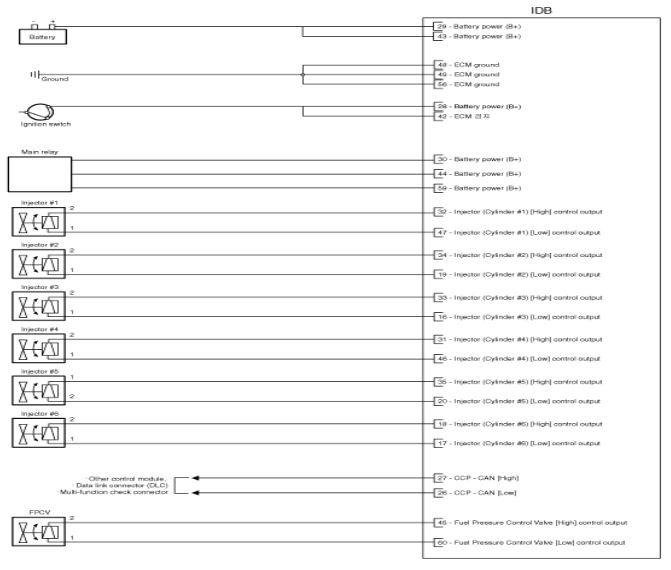

Fig 2: Injector Drive Box (IDB) Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
