Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the installation bolts (B), and then vertically remove the sensor from the surge tank.

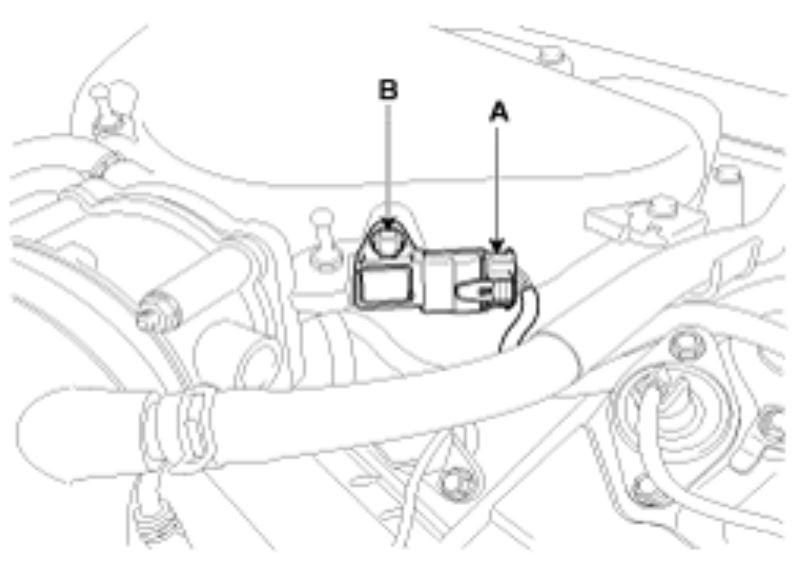

Fig 1: Identifying Manifold Absolute Pressure Sensor Connector & Installation Bolts
G00540426Courtesy of HYUNDAI MOTOR CO.
