Wave Form

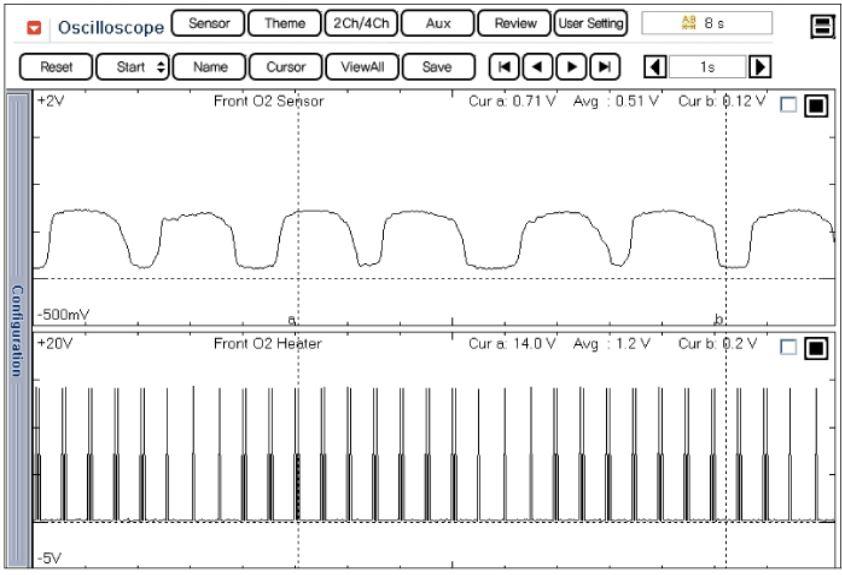

Fig 1: Front O2 Sensor & Front O2 Heater - Waveform Graph

G00540454

Courtesy of HYUNDAI MOTOR CO.

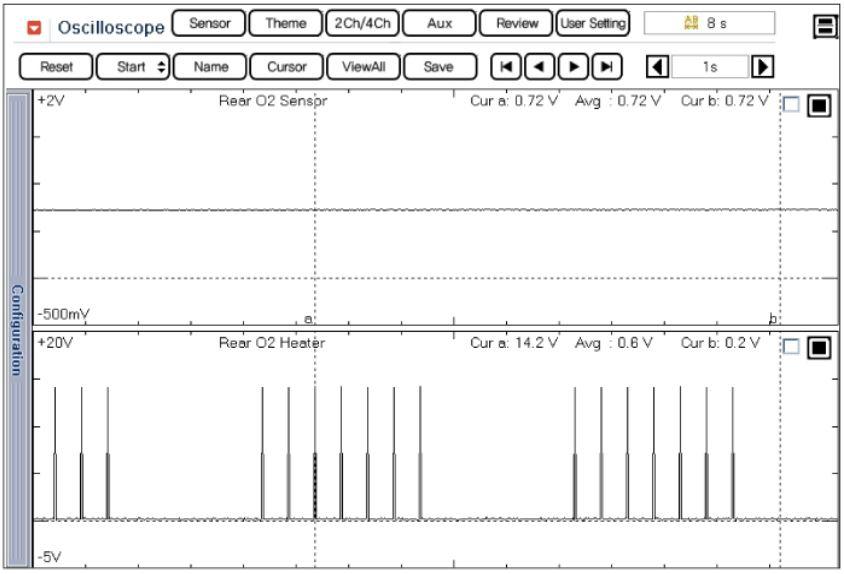

Fig 2: Rear O2 Sensor & Rear O2 Heater - Waveform Graph

G00540455

Courtesy of HYUNDAI MOTOR CO.
