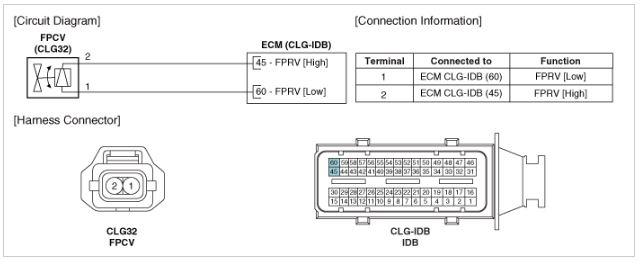

Home >> Hyundai >> 2013 >> Genesis Coupe 3.8 R-Spec >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> Fuel Pressure Control Valve >> Schematic Diagrams >> Circuit Diagram
