Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the service cover (A) in the trunk.

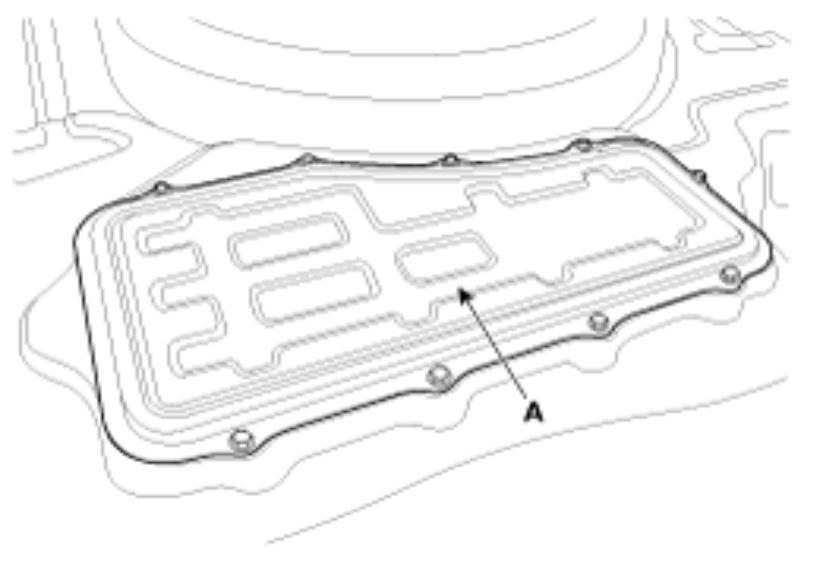

    Fig 1: Service Cover
    G00540698Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation hose (B) from the canister close valve.

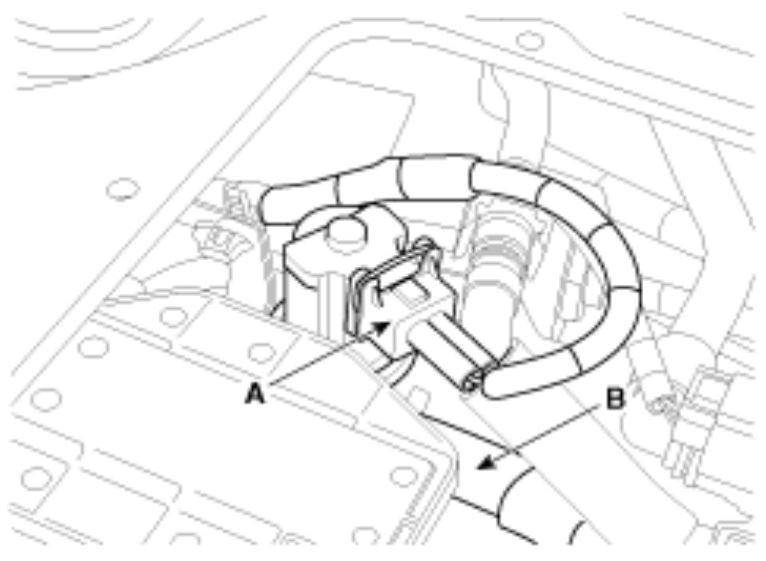

    Fig 2: Identifying Canister Close Valve Connector & Ventilation Hose
    G00540699Courtesy of HYUNDAI MOTOR CO.
  5. Remove the CCV from the fuel tank air filter assembly after removing 2 bolts (A).

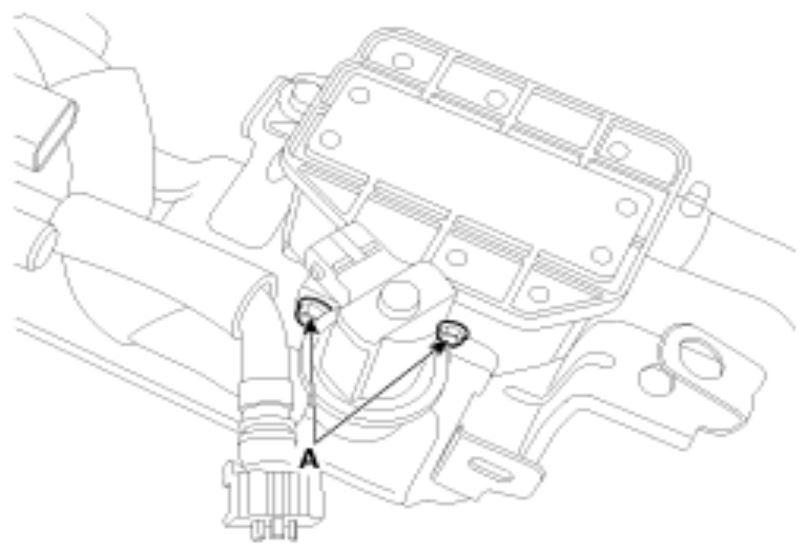

    Fig 3: Canister Close Valve (CCV) Bolts
    G00540700Courtesy of HYUNDAI MOTOR CO.
