Circuit Diagram

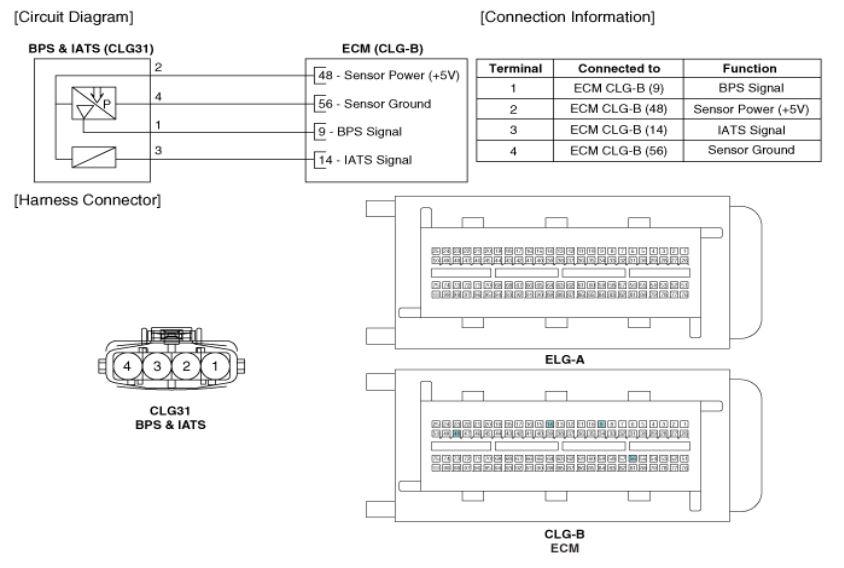

Fig 1: Barometric Pressure Sensor Circuit Diagram
G00540434Courtesy of HYUNDAI MOTOR CO.
