Component Location

WARNING: This page is about a different car, the 2012 Hyundai Genesis Coupe. However, it is still accessible from the selected car via links, so may be relevant.

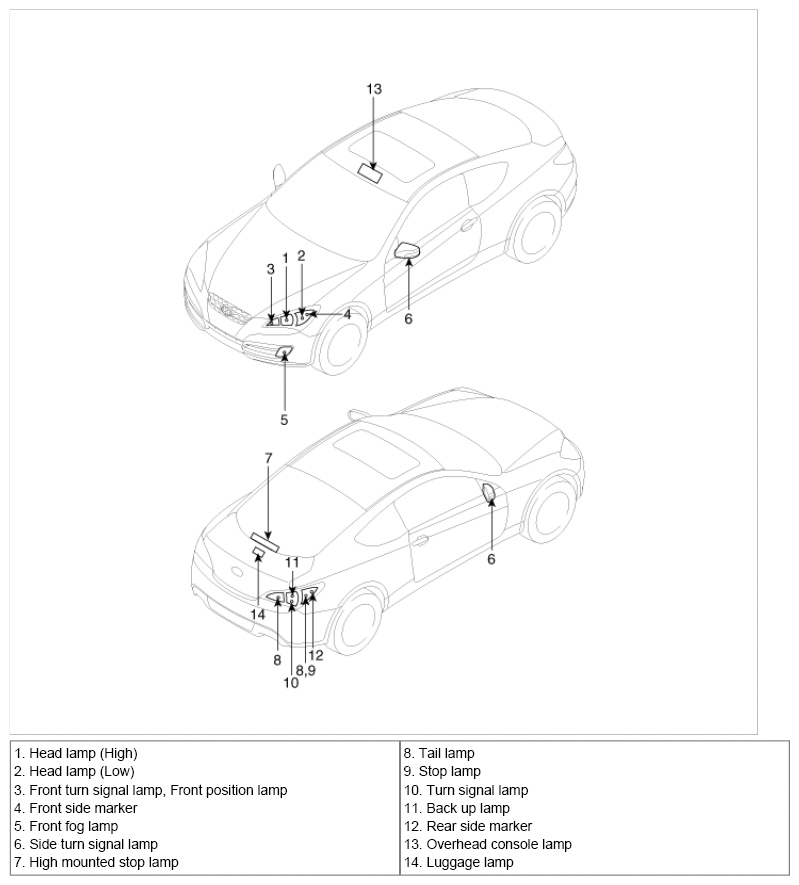

Fig 1: Locating Lighting System Components
G06510121Courtesy of HYUNDAI MOTOR CO.
