Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad side cover (A).
    Fig 1: Identifying Crash Pad Side Cover
    G08838980Courtesy of HYUNDAI MOTOR AMERICA
  3. After loosening the crash pad lower panel mounting screws, then remove the lower panel (A).
    Fig 2: Identifying Crash Pad Lower Panel And Mounting Screws
    G08838981Courtesy of HYUNDAI MOTOR AMERICA
  4. After loosening the mounting bolts, then remove the reinforcing panel (A).
    Fig 3: Identifying Reinforcing Panel And Mounting Bolts
    G08838982Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the mode control actuator connector (A) after removing the air duct.
  6. Loosen the mounting screws and then remove the mode control actuator (B).

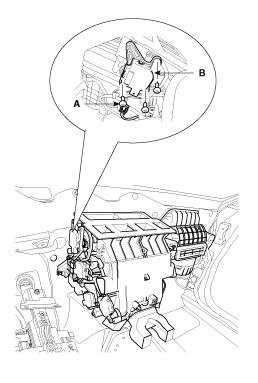

    Fig 4: Identifying Mode Control Actuator And Connector
    G08838983Courtesy of HYUNDAI MOTOR AMERICA
  7. Installation is the reverse order of removal.
