Components and Components Location: Component

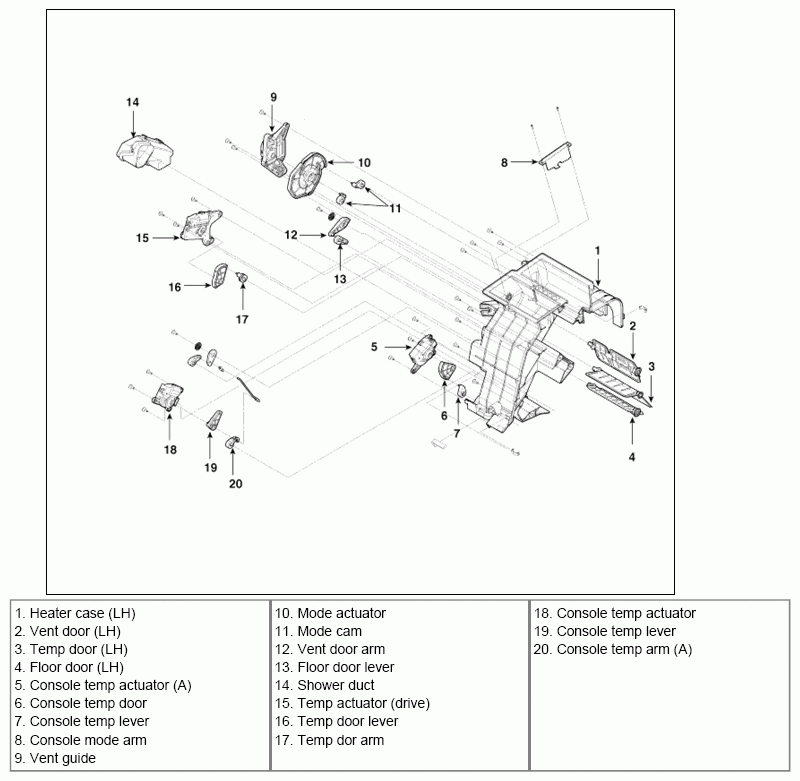

Fig 1: Identifying Heater Unit And Related Components (1 Of 2)
G08838954Courtesy of HYUNDAI MOTOR AMERICA

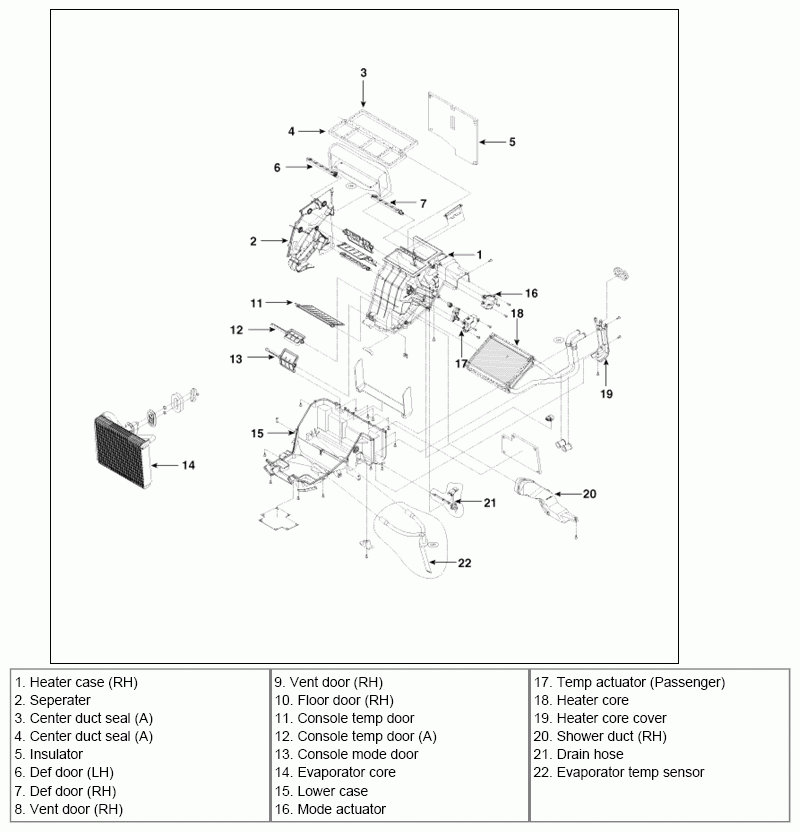

Fig 2: Identifying Heater Unit And Related Components (2 Of 2)
G08838955Courtesy of HYUNDAI MOTOR AMERICA
