Components and Components Location: Components

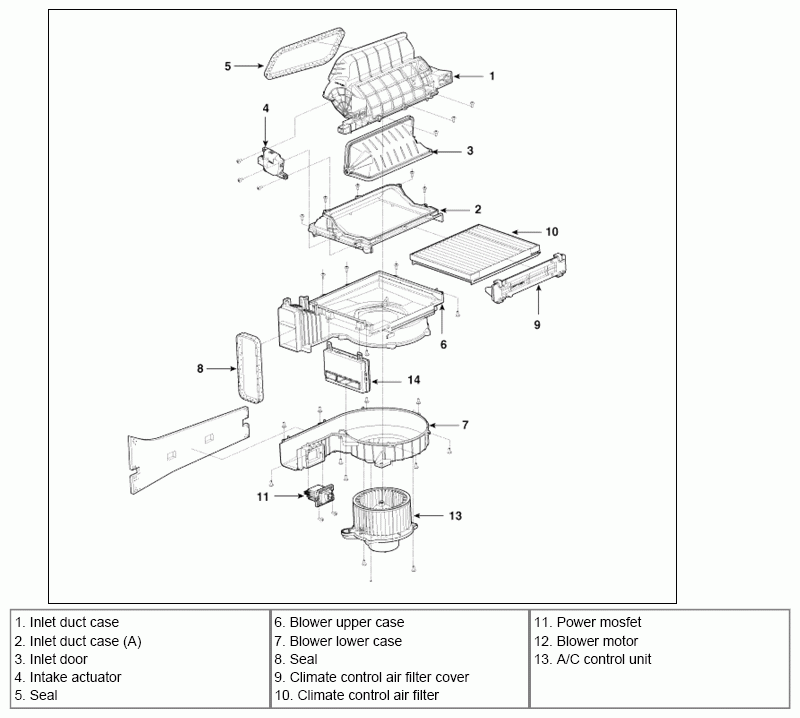

Fig 1: Identifying Blower Unit And Related Components

G08839000

Courtesy of HYUNDAI MOTOR AMERICA
